| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

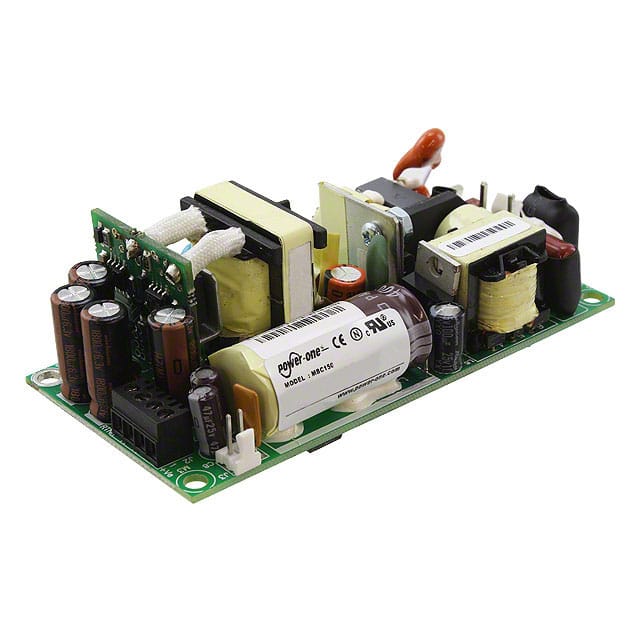

The Bel Power Solutions MBC150-1005G is an open frame AC DC converter designed for various applications, including medical, telecom, and industrial equipment. It operates with a wide universal input range of 90-264 VAC and provides a single 5VDC output.
This power supply offers up to 110W of output power under convection cooling, increasing to 150W with forced-air cooling. It boasts high efficiency, reaching up to 86% at 230 VAC, and features low conducted and radiated noise. The unit is approved to EN/IEC 60601-1 standards, providing 2 x MOPP isolation for patient protection.
With a compact form factor of 4 x 2 x 1.3 inches, the MBC150-1005G is suitable for space-constrained designs. It supports chassis mounting and includes features like adjustable output, DC input capability, and a standby output. The operating temperature range is -20°C to 70°C with derating.
The input voltage range is 90-264 VAC.
The package is open frame chassis mount.
-20°C to 70°C with derating.
5 VDC at 16 A.
86% typical at 230 VAC, 84% at 120 VAC.
5.9 kV with 2xMOPP.
101.6mm x 50.8mm x 33.6mm (4.00" x 2.00" x 1.32").
