| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

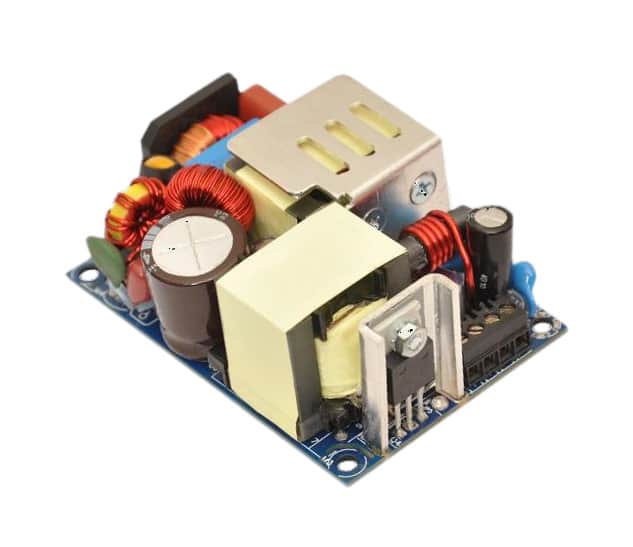

The Bel Power Solutions MBC120-1T24L is an open frame AC/DC power supply designed for various applications, including medical, telecom, datacom, and industrial equipment. It offers a universal input voltage range of 85-264 VAC and delivers a 24V output with a maximum current of 4.16A, providing 100W of power under convection cooling and up to 120W with forced air.
This converter boasts an efficiency of 91% and features like adjustable output, PFC, and DC input capability. It operates within a temperature range of -40°C to 70°C with derating and provides 4 kV isolation. The compact dimensions of 76.2mm x 50.8mm x 30.1mm make it suitable for space-constrained designs.
Designed and approved to medical standards (EN/IEC 60601-1), it offers 2x MOPP isolation, making it suitable for BF applications. The unit is CE marked and RoHS3 compliant. Its robust design includes features such as thermal shut-down and over-current protection, with a high MTBF rating of over 3 million hours.
85-264 VAC.
24V output, maximum 4.16A.
-40°C to 70°C with derating.
4 kV.
>3 million hours.
Typical 91%, up to 93%.
Open frame.
2x MOPP.
