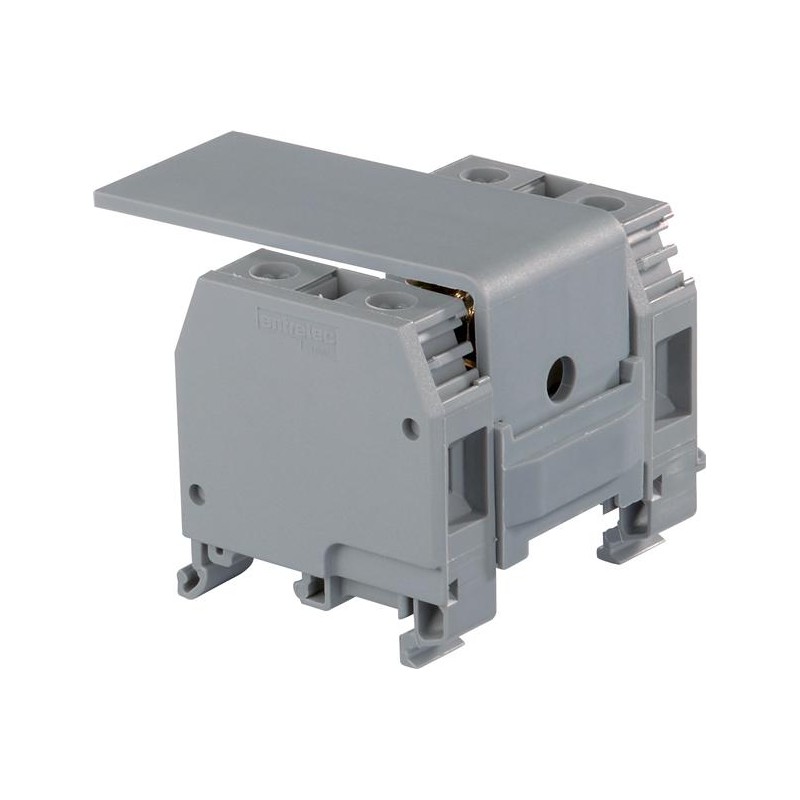

MB70/10.L4 The Entrelec MB70/10.L4 is a distribution terminal block featuring screw clamp connections and a 10mm spacing. It is designed for mounting on various DIN rails.
Mfr Part #:

MB70/10.L4

Available from 1 distributors
Mfr Name: Entrelec
Entrelec
The Entrelec MB70/10.L4 is a distribution terminal block featuring screw clamp connections and a 10mm spacing. It is designed for mounting on various DIN rails.
✓ Total Stock: 17 pcs
$ Price Range: $0.38

MB70/10.L4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MB70/10.L4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connection Type
Function
Height
Number of Levels
View Similar Products (0)

MB70/10.L4 Description

Short technical summary and product information.

The Entrelec MB70/10.L4 is a distribution terminal block designed for efficient electrical connections. It features a 10 mm spacing between terminals and utilizes screw clamp connections for secure wire termination.



This terminal block is rated for an impulse withstand voltage of 8 kV and has a pollution degree of 2. It is suitable for mounting on G32 (32 x 15 mm), TH35-7.5 (35 x 7.5 mm), and TH35-15 (35 x 15 mm) DIN rails according to IEC 60715 standards. The wire stripping length is specified as 12 mm, and a 5.5 mm screwdriver is recommended for tightening.



With a rated cross-section of 10 mm², the MB70/10.L4 is built for robust applications. Its flammability rating according to UL94 is V2. The product has a net width of 74 mm, height of 68 mm, and depth of 44.2 mm, with a net weight of 130 g. The color is grey.

MB70/10.L4 Quick Information

Product Type: Distribution Terminal Block
Series: MB70
Canonical Name: Entrelec MB70/10.L4 Distribution Terminal Block
Subcategory: Terminal Block Adapters

MB70/10.L4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MB70/10.L4 Estimated Pricing

Qty Low High
1+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

MB70/10.L4 Features

  • 10mm spacing for efficient connections.
  • Secure screw clamp connection type.
  • Rated for 8 kV impulse withstand voltage.
  • Compatible with multiple DIN rail types.
  • UL94 V2 flammability rating.

MB70/10.L4 Applications

  • Ideal for electrical distribution panels.
  • Suitable for industrial control systems.
  • Used in power distribution applications.
  • Facilitates wire termination in enclosures.

MB70/10.L4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the spacing on the MB70/10.L4 distribution terminal block?

The spacing on the MB70/10.L4 distribution terminal block is 10 mm.

What type of connection does the MB70/10.L4 use?

The MB70/10.L4 uses screw clamp connections.

What is the rated impulse withstand voltage for the MB70/10.L4?

The rated impulse withstand voltage for the MB70/10.L4 is 8 kV.

What DIN rail sizes can the MB70/10.L4 be mounted on?

The MB70/10.L4 can be mounted on G32 (32 x 15 mm), TH35-7.5 (35 x 7.5 mm), and TH35-15 (35 x 15 mm) DIN rails.

What is the flammability rating of the MB70/10.L4?

The flammability rating according to UL94 for the MB70/10.L4 is V2.
