| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

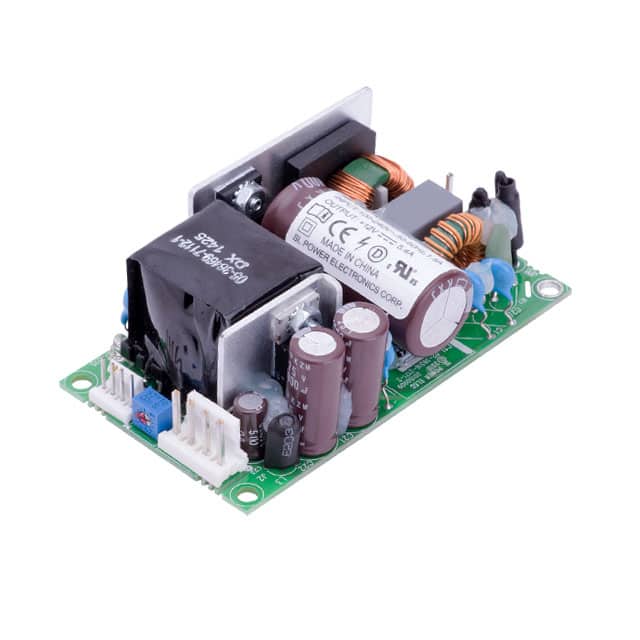

The SL Power Electronics MB65S24K is a 65-watt, single-output AC-DC power supply designed for medical applications. It operates with a universal input voltage range of 90 to 264 VAC and provides a nominal output voltage of 24V at 2.7A.
This power supply features an open frame construction and chassis mount type, making it suitable for integration into various systems. Key electrical specifications include an efficiency of up to 90%, a hold-up time of 20mS, and comprehensive protection features such as overvoltage, short circuit, and overload protection. The isolation voltage is rated at 4500 VAC between input and output.
Designed for reliability, the MB65S24K has an MTBF of 564,500 hours at 25°C and comes with a 3-year warranty. It meets medical grade standards and complies with IEC60601-1-2 4th Edition, offering 2x MOPP isolation and BF isolation type rating. The operating temperature range is -20°C to 70°C with derating.
The output voltage is 24V.
The input voltage range is 90 to 264 VAC.
The maximum output current is 2.7 A.
The power rating is 65W.
The operating temperature range is -20°C to 70°C (With Derating).
The MB65S24K uses chassis mount.
Key features include 65 Watts convection cooled power, universal input voltage 90 to 264 VAC, 24V single output voltage, medical grade with 2x MOPP isolation, and an open frame, chassis mount design.
