| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

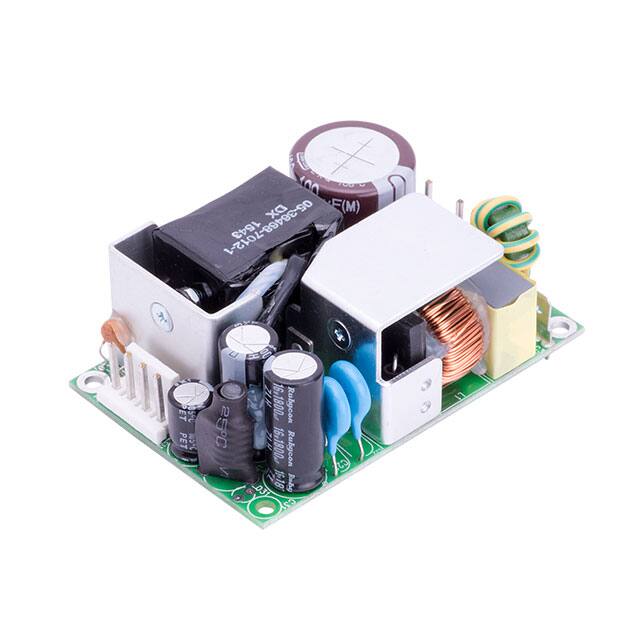

The SL Power Electronics MB60S12K is a 55W AC/DC power supply from the MB60 series, designed for medical applications. It provides a single 12V output with a maximum current of 4.58A.
This converter features a universal input voltage range of 90 to 264 VAC and an input frequency of 47-63 Hz. It boasts high efficiency, rated at 83% to 88%, with a low no-load power consumption of less than 0.5W. The operating temperature range is -10°C to 80°C with derating.
Designed for reliability, the MB60S12K includes overvoltage protection, short circuit protection, and overload protection. It has a compact open-frame form factor with dimensions of 76.2mm x 50.8mm x 25.4mm and is suitable for chassis mounting.
Safety and compliance are key, with approvals including CB and CE. It meets IEC60601-1 3rd Edition standards and is RoHS3 compliant.
90 to 264 VAC.
-10°C to 80°C with derating.
55W.
76.2mm x 50.8mm x 25.4mm (3.00" x 2.00" x 1.00").
Overvoltage, short circuit (hiccup mode), over temperature (auto-recovery), and overload protection (hiccup mode).
83% minimum to 88% maximum.
