| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Mounting Type | |
| Peak Forward Surge Current | |
| Reverse Current | |
| SVHC Present |

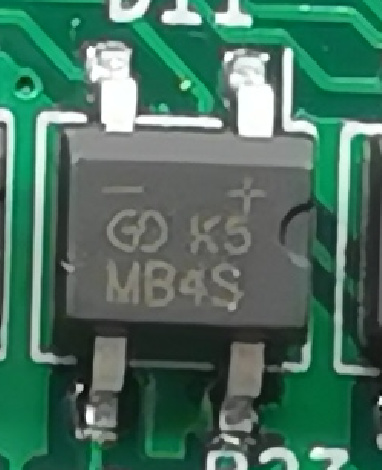

The Multicomp Pro MB4S is a surface-mount bridge rectifier designed for general-purpose AC/DC full-wave rectification. It features a miniature MBS (TO-269AA) package, making it ideal for space-constrained printed circuit boards and automated placement.
Key electrical characteristics include a maximum repetitive peak reverse voltage (VRRM) of 400V and a maximum average forward output rectified current (IF(AV)) of 0.5A when mounted on a glass epoxy PCB. It also boasts a high surge current capability of 35A for 8.3ms.
This bridge rectifier is suitable for various applications such as power supplies, lighting ballasts, battery chargers, home appliances, office equipment, and telecommunication systems. The device operates within a temperature range of -55°C to +150°C.
Mechanical data indicates the case is MBS (TO-269AA) with molding compound meeting UL 94 V-0 flammability rating. Terminals are matte tin plated and solderable per J-STD-002 and JESD22-B102.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
400 V.
0.5 A on glass-epoxy PCB, 0.8 A on aluminum substrate.
1.0 V at 0.4 A forward current.
MBS (TO-269AA) surface mount.
35 A for 8.3 ms single half sine-wave.
5 μA.
-55°C to +150°C.
