| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Insulation Class | |
| Operating Temperature | |
| Operating Voltage | |
| Power Consumption | |
| SVHC Present | |
| Static Pressure | |
| Supply Voltage |

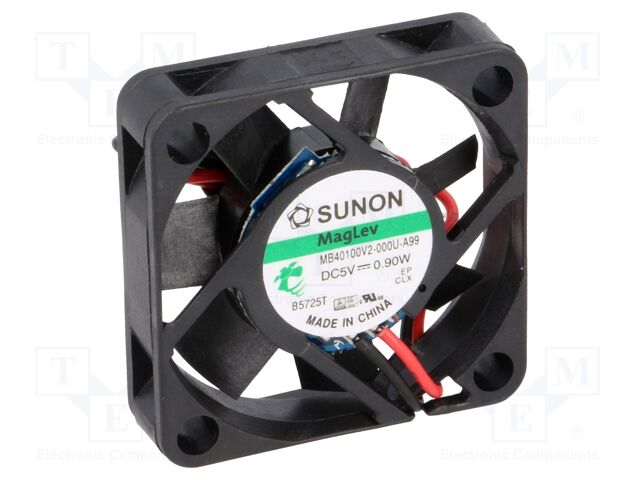

The SUNON MB40100V2-000U-A99 is a DC axial fan designed for cooling applications. It operates at a nominal supply voltage of 5VDC, with an allowable operating voltage range of 3.5 to 6VDC. The fan has compact dimensions of 40x40x10mm, making it suitable for space-constrained environments.
This fan provides an airflow of 11.9 m³/h with a noise level of 27 dBA. It features a Vapo bearing type and a brushless DC motor, operating at a speed of 5800 rpm. The fan's construction includes a thermoplastic impeller and enclosure, and it has an insulation class of A and a flammability rating of UL94V-0.
Additional features include autorestart functionality. The fan has a static pressure rating of 3.3mm H₂O and a lead length of 0.3m. Its operating temperature range is from -10°C to 70°C. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.5 to 6 VDC, with a nominal supply voltage of 5 VDC.
The fan dimensions are 40 x 40 x 10 mm.
The fan provides an airflow of 11.9 m³/h with a noise level of 27 dBA.
The fan can operate within a temperature range of -10 to 70 °C.
This fan uses a Vapo bearing.
The fan has a rotational speed of 5800 rpm.
Yes, it features an autorestart function.
