| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

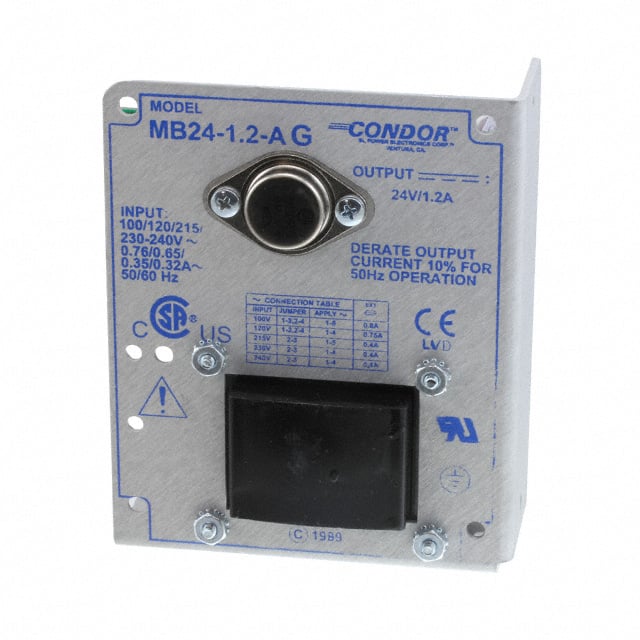

The SL Power Electronics MB24-1.2-AG is an AC DC converter designed for various applications, including medical use. It provides a stable 24V DC output with a current rating of 1.2A.
This converter operates with a universal input voltage range of 100 to 240 VAC, offering flexibility for global use. It achieves an efficiency of 60% and features adjustable output, remote sensing, and automatic current limit/foldback for protection. The operating temperature range is 0°C to 70°C with derating.
Designed for chassis mounting, the MB24-1.2-AG has dimensions of 124.0mm x 101.6mm x 41.4mm. It also includes features like logic inhibit and current-share capabilities, making it suitable for complex power systems. The Mean Time Between Failures (MTBF) is rated at over 200,000 hours per MIL-HDBK-217D.
100-240 VAC nominal.
Chassis mount.
0 to 50°C full rated, derated linearly to 40% at 70°C.
24 VDC.
1.2 A.
60%.
Yes, automatic current limit/foldback.
