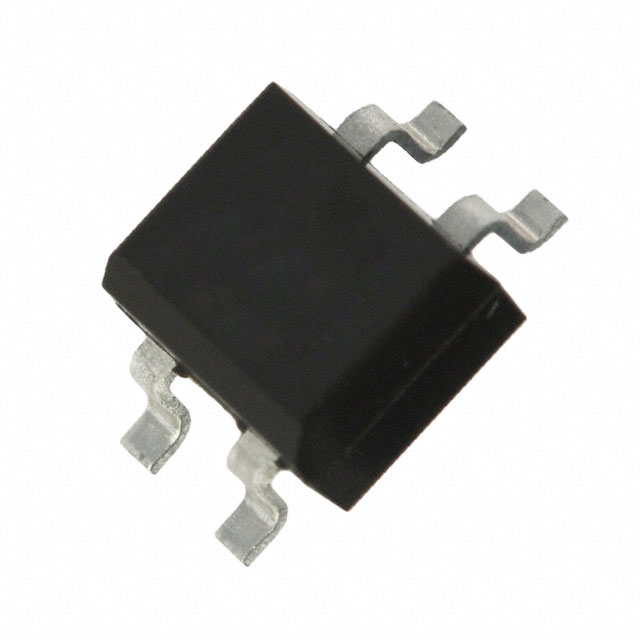

MB1S MB1S is a single phase bridge rectifier from On Semiconductor with 100V maximum reverse voltage and 500mA average forward current. It comes in a surface mount 4-SOIC package.
Mfr Part #:

MB1S

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
MB1S is a single phase bridge rectifier from On Semiconductor with 100V maximum reverse voltage and 500mA average forward current. It comes in a surface mount 4-SOIC package.
✓ Total Stock: 15,066 pcs
$ Price Range: $0.13 - $0.69

MB1S Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MB1S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Supplier Device Package
Technology
Voltage
View Similar Products (0)

MB1S Description

Short technical summary and product information.

The MB1S is a single phase bridge rectifier manufactured by On Semiconductor. This device is designed for converting alternating current (AC) to direct current (DC) in low power applications. It features a maximum repetitive reverse voltage (VRRM) of 100V and an average forward current of 500mA. The reverse leakage current is 5 µA at the rated voltage.



The rectifier utilizes standard silicon technology and operates over a junction temperature range of -55°C to 150°C. It is housed in a compact surface mount TO-269AA package, also known as 4-BESOP, with a 4-SOIC supplier package. This makes it suitable for automated assembly and space-constrained designs.



Common applications include power supply rectification, small converter modules, and general purpose AC to DC conversion. The device is RoHS compliant (unverified) and has an MSL rating of 1, indicating unlimited floor life.

MB1S Quick Information

Product Type: Bridge Rectifier
Canonical Name: Single Phase Bridge Rectifier, 100V, 500mA, Surface Mount
Subcategory: Single Phase

MB1S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

MB1S Estimated Pricing

Qty Low High
1+ $0.69 $0.69
10+ $0.43 $0.43
100+ $0.27 $0.27
500+ $0.21 $0.21
1,000+ $0.19 $0.19
3,000+ $0.15 $0.15
6,000+ $0.13 $0.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

MB1S Features

  • 100V maximum repetitive reverse voltage rating.
  • 500mA average forward current capability.
  • Surface mount 4-SOIC compact package.
  • Operates from -55°C to 150°C junction temperature.
  • Low reverse leakage current of 5 µA.

MB1S Applications

  • Ideal for AC to DC bridge rectification circuits.
  • Used in low power power supply modules.
  • Suitable for general purpose rectifier applications.
  • Well fit for space-constrained PCB designs.

MB1S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the MB1S?

100V.

What is the average forward current rating of the MB1S?

500mA.

What is the reverse leakage current of the MB1S?

5 µA at 100V reverse voltage.

What is the operating temperature range of the MB1S?

-55°C to 150°C junction temperature.

What package does the MB1S come in?

Surface mount TO-269AA (4-BESOP) with 4-SOIC supplier package.

What is the mounting type of the MB1S?

Surface mount.

What diode technology does the MB1S use?
