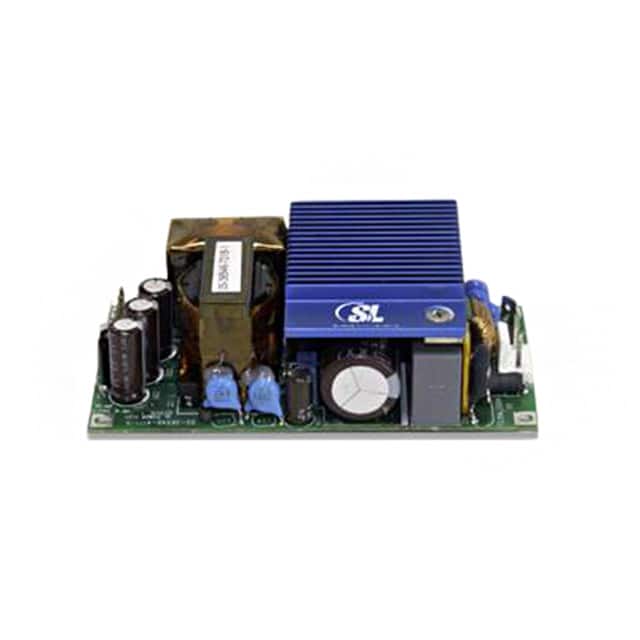

The Advanced Energy MB120S12K01 is part of the SL Power MB120 series, offering high-density, single-output, open-frame AC/DC power supplies. Approved to EN/CSA/IEC/ES 60601-1, this converter is suitable for demanding industrial and medical applications where power density and cost-effectiveness are crucial.
This model operates with a universal input range of 80 to 264 VAC and delivers up to 120W with forced air or 100W convection cooled. It provides a regulated output voltage between 12 to 24 VDC with a maximum power of 120W. Key electrical specifications include high efficiency (92-94% typical), low standby power (<0.5W), and robust protection features like overvoltage, short circuit, and thermal protection.
The MB120S12K01 has a compact footprint measuring 101.6mm x 50.8mm x 31.8mm (4.00" L x 2.00" W x 1.25" H), making it ideal for 1U applications. It operates within a wide temperature range of -10°C to 70°C with derating. The design emphasizes reliability with a 10-year life design using premium E-caps and includes BF isolation type rating with 2x MOPP isolation.
This converter is designed for chassis mounting and features an open-frame construction. It is approved to medical standards, making it a reliable choice for healthcare equipment and industrial control systems.
The MB120S12K01 provides a maximum power of 120W with forced air and 100W convection cooled.
The input voltage range is 80 to 264 VAC.
The output voltage range is 12 to 24 VDC.
The operating temperature range is -10°C to 70°C with derating.
The MB120S12K01 is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The MB120S12K01 is REACH Unaffected.
