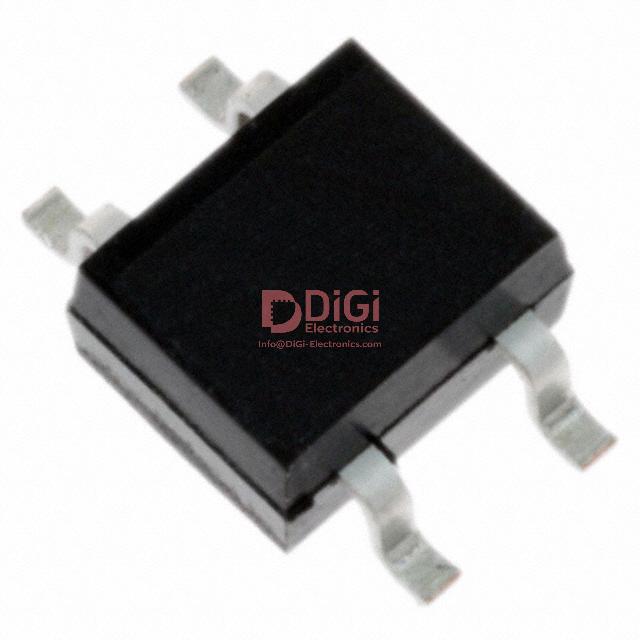

MB110S-TP The MB110S-TP is a single phase Schottky bridge rectifier from MICRO. It features a 100V peak reverse voltage and 1A average rectified current.
Mfr Part #:

MB110S-TP

Available from 1 distributors
Mfr Name: MICRO
MICRO
The MB110S-TP is a single phase Schottky bridge rectifier from MICRO. It features a 100V peak reverse voltage and 1A average rectified current.
✓ Total Stock: 1,420 pcs

MB110S-TP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,420 pcs
On Request
1420 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MB110S-TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diode Type
Lead Style
Mounting Type
Operating Temperature
Package / Case
Supplier Device Package
Tape & Reel
Technology
View Similar Products (0)

MB110S-TP Description

Short technical summary and product information.

This MB110S-TP bridge rectifier from MICRO is designed for single-phase applications. It utilizes Schottky technology for efficient rectification.



The component has a maximum peak reverse voltage rating of 100V and can handle an average rectified current of 1A. The forward voltage drop is a maximum of 750mV at 1A, with a low reverse leakage current of 500µA at 100V.



Operating within a temperature range of -55°C to 125°C, the MB110S-TP is suitable for various environmental conditions. It is housed in a surface mount TO-269AA, 4-BESOP package, often referred to as Mini-Dip.



This rectifier is supplied in Tape & Reel packaging, making it compatible with automated assembly processes.

MB110S-TP Quick Information

Product Type: Bridge Rectifier
Canonical Name: Single Phase Schottky Bridge Rectifier
Subcategory: Rectifiers

MB110S-TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MB110S-TP Features

  • 100V peak reverse voltage rating.
  • 1A average rectified current capacity.
  • Schottky technology for efficient rectification.
  • Surface mount TO-269AA package.
  • Wide operating temperature range.

MB110S-TP Applications

  • Low voltage power supply rectification.
  • Freewheeling diode in switching converters.
  • Reverse polarity protection circuits.
  • Output rectification in DC-DC converters.

MB110S-TP FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the MB110S-TP?

The maximum peak reverse voltage for the MB110S-TP is 100V.

What is the average rectified current rating of the MB110S-TP?

The MB110S-TP has an average rectified current rating of 1A.

What is the forward voltage drop of the MB110S-TP at 1A?

The maximum forward voltage drop for the MB110S-TP at 1A is 750mV.

What type of technology does the MB110S-TP use?

The MB110S-TP uses Schottky technology.

What is the operating temperature range for the MB110S-TP?

The MB110S-TP operates between -55°C and 125°C.

What package is the MB110S-TP supplied in?

The MB110S-TP is supplied in a surface mount TO-269AA, 4-BESOP package, also known as Mini-Dip.
