| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
582 pcs
|
582 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Forward Voltage | |
| Halogen Free | |
| Junction Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance | |
| Voltage |

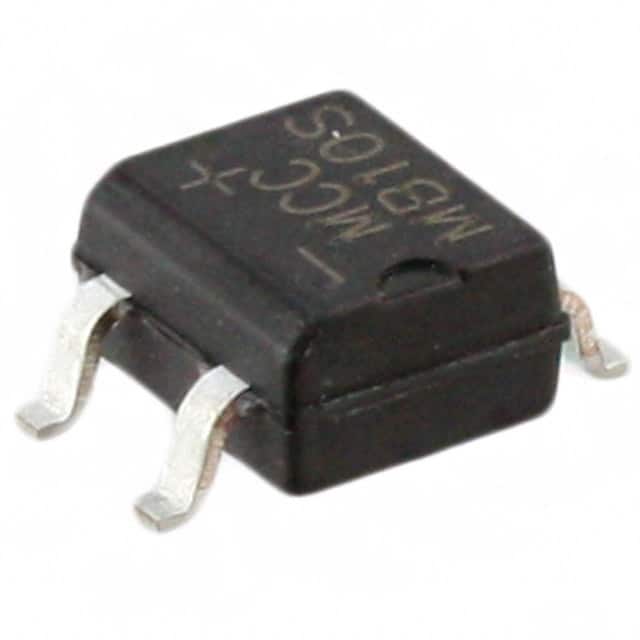

The MB10S-TP from Micro Commercial is a single-phase bridge rectifier designed for power rectification applications. It offers a peak repetitive reverse voltage of up to 1000V (1kV) and an average rectified forward current of 0.5A. The device is constructed with a glass passivated chip junction and meets UL 94 V-0 flammability rating.
This bridge rectifier is housed in a TO-269AA, 4-BESOP surface mount package, making it suitable for compact designs. It operates over a wide temperature range of -55°C to 150°C. The MB10S-TP is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Key electrical characteristics include a typical forward voltage of 1.0V at 0.4A and a typical junction capacitance of 13pF at 1MHz. The non-repetitive peak surge current is rated at 60A for an 8.3ms half sine wave. Thermal resistance from junction to lead is 20°C/W on a glass epoxy PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak repetitive reverse voltage for the MB10S-TP is 1000 V.
The average rectified forward current of the MB10S-TP is 0.5 A.
The MB10S-TP uses a TO-269AA, 4-BESOP package.
The operating junction temperature range for the MB10S-TP is -55°C to 150°C.
Yes, the MB10S-TP is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MB10S-TP is 1.
