| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,020 pcs
|
4020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Forward Voltage | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

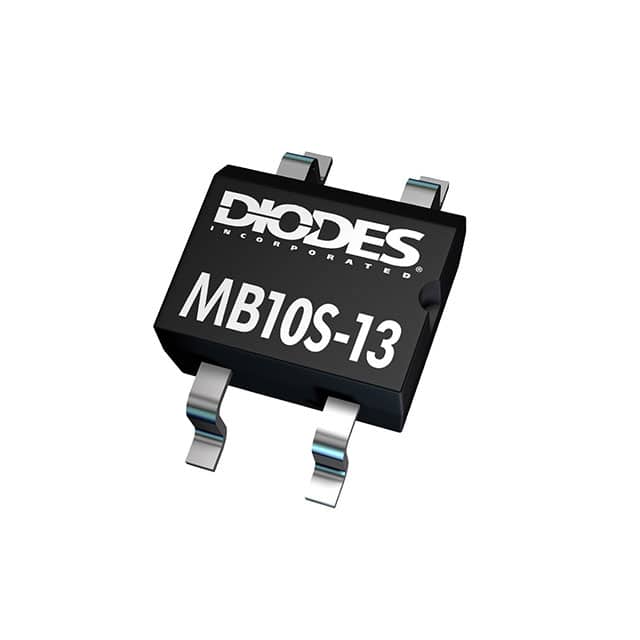

The Diodes Incorporated MB10S-13 is a surface mount glass passivated bridge rectifier. It is suitable for AC to DC bridge full wave rectification applications including SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment, and telecommunication systems.
Key electrical specifications include a peak repetitive reverse voltage of 1000V and an average rectified output current of 0.8A at 40°C. The typical forward voltage is 1.1V at 0.8A, and the typical reverse leakage current is 5μA at 1000V and 25°C. It also offers a non-repetitive peak forward surge current of 30A for 8.3ms.
This rectifier is housed in an MBS package, which is a miniature package designed to save space on PC boards. It features a molded plastic case with UL Flammability Classification Rating 94V-0. The terminals have a lead-free matte tin finish and are solderable per MIL-STD-202, Method 208. The component is designed for SMT manufacturing and has a moisture sensitivity level of 1.
The MB10S-13 is RoHS compliant and is also a "Green" device, meaning it is halogen and antimony free. It operates over a temperature range of -55°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak repetitive reverse voltage is 1000V.
The average rectified output current is 0.8A at 40°C.
The typical forward voltage is 1.1V at 0.8A and 25°C.
The package type is MBS.
Yes, the MB10S-13 is RoHS3 compliant.
The moisture sensitivity level is 1 Unlimited.
