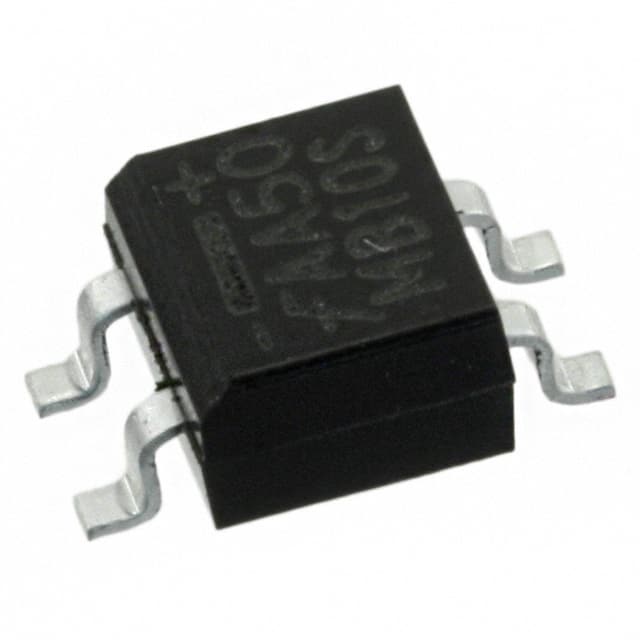

MB10S The MB10S is a 1000V, 0.5A single-phase bridge rectifier from On Semiconductor. It features a 35A surge rating and is RoHS compliant.
Mfr Part #:

MB10S

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The MB10S is a 1000V, 0.5A single-phase bridge rectifier from On Semiconductor. It features a 35A surge rating and is RoHS compliant.
✓ Total Stock: 9,659,987 pcs
$ Price Range: $0.22 - $1.05

MB10S Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
9,588,000 pcs
On Request
9588000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
60,000 pcs
On Request
60000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
6,987 pcs
On Request
6987 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request 14+15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MB10S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Forward Voltage
Medical Grade
Mounting Type
Operating Temperature
Power Dissipation
Supplier Device Package
Technology
Termination Style
Voltage
View Similar Products (0)

MB10S Description

Short technical summary and product information.

The MB10S is a single-phase bridge rectifier from On Semiconductor's MB family, designed for small power supplies requiring high surge absorption. It is rated for a maximum repetitive reverse voltage of 1000V and an average rectified forward current of 0.5A on glass-epoxy PCB (0.8A on aluminum substrate). The device offers a non-repetitive peak forward surge current of 35A and an I²t rating of 5.0 A²s.



Thermal characteristics include a power dissipation of 1.4W, junction-to-ambient thermal resistance of 85°C/W, and junction-to-lead thermal resistance of 20°C/W. The operating junction temperature range is -55°C to 150°C. The forward voltage is 1.0V maximum at 0.5A, and reverse leakage is 5µA at 25°C and 0.5mA at 125°C.



The MB10S is supplied in a surface-mount SOIC-4 package (TO-269AA, 4-BESOP) with gull-wing terminations. It is available in tape and reel packaging with a standard quantity of 3000 pieces per reel. The device is RoHS compliant, Pb-free, and UL certified (E258596).

MB10S Quick Information

Product Type: Bridge Rectifier
Series: MB10S
Canonical Name: MB10S Bridge Rectifier, 1000V, 0.5A, Surface Mount, SOIC-4
Subcategory: Single Phase Bridge Rectifier

MB10S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

MB10S Estimated Pricing

Qty Low High
1+ $1.05 $1.05
10+ $0.66 $0.66
100+ $0.43 $0.43
500+ $0.33 $0.33
1,000+ $0.30 $0.30
3,000+ $0.24 $0.24
6,000+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

MB10S Features

  • 1000V maximum repetitive reverse voltage.
  • 0.5A average rectified forward current.
  • 35A non-repetitive peak surge current.
  • Surface-mount SOIC-4 package.
  • RoHS compliant and Pb-free.

MB10S Applications

  • Used in small power supply circuits.
  • Ideal for AC-to-DC bridge rectification.
  • Suitable for printed circuit board assembly.
  • Designed for high surge current absorption.

MB10S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive reverse voltage of the MB10S?

1000V.

What is the average rectified forward current?

0.5A on glass-epoxy PCB, 0.8A on aluminum substrate.

What is the forward voltage drop?

1.0V maximum at 0.5A.

What package is the MB10S available in?

Surface-mount SOIC-4 (TO-269AA, 4-BESOP).

What is the surge current rating?

35A non-repetitive peak forward surge current.
