Mfr Part #:

MB1-B-30-610-1-A26-2-C

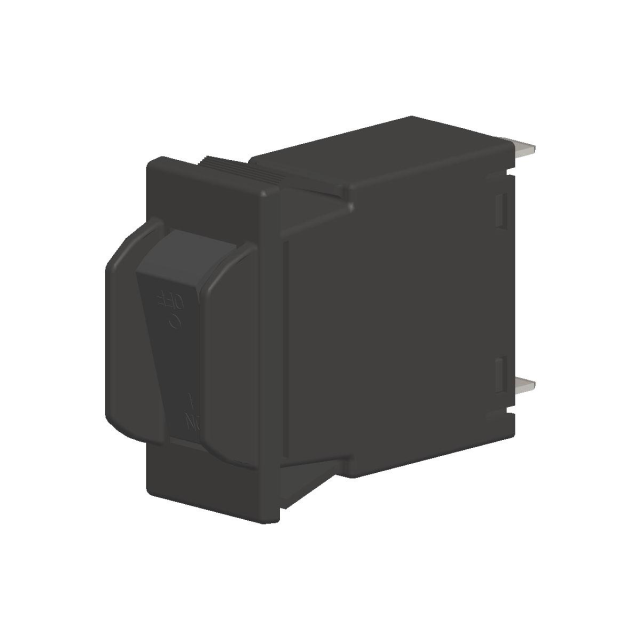

The Littelfuse Inc. MB1-B-30-610-1-A26-2-C is a 10 Amp, 250 Volt, 1-pole hydraulic magnetic circuit breaker. It features a panel mount design and a rocker actuator.

Stock on Request

MB1-B-30-610-1-A26-2-C Description

Short technical summary and product information.

This Littelfuse Inc. M-Series circuit breaker, part number MB1-B-30-610-1-A26-2-C, is a hydraulic magnetic type designed for reliable circuit protection. It offers a current rating of 10 Amps and a voltage rating of 250 Volts, with a single pole configuration.

The breaker is designed for panel mounting and features a non-illuminated rocker actuator for operation. It has undergone approvals for CCC, CSA, and UL 1077 standards, indicating its suitability for various applications.

Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. The termination style is push-on 0.250 tab (Q.C.). This component is part of the M-Series product line, known for rugged and reliable performance in demanding OEM environments.

MB1-B-30-610-1-A26-2-C Quick Information

Product Type: Circuit Breaker

Series: M-Series

Canonical Name: Littelfuse Inc. MB1-B-30-610-1-A26-2-C Hydraulic Magnetic Circuit Breaker

Subcategory: Hydraulic-Magnetic Circuit Breaker

MB1-B-30-610-1-A26-2-C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MB1-B-30-610-1-A26-2-C Features

10 Amp current rating for circuit protection.
250 Volt AC/DC voltage rating.
Single pole hydraulic magnetic breaker.
Panel mount design with rocker actuator.
CCC, CSA, UL 1077 agency approvals.

MB1-B-30-610-1-A26-2-C Applications

Suitable for demanding OEM environments.
Used in various industrial automation systems.
Provides reliable overcurrent protection.
Designed for panel-mounted applications.

MB1-B-30-610-1-A26-2-C FAQs

7 frequently asked questions generated from this part’s specifications.

What is the voltage rating of this Littelfuse circuit breaker?

250 V.

What is the current rating of the MB1-B-30-610-1-A26-2-C?

10 A.

How many poles does this circuit breaker have?

1 pole.

What breaker type is the Littelfuse MB1-B-30-610-1-A26-2-C?

Magnetic hydraulic delay type.

What actuator type does this circuit breaker use?

Rocker actuator.

What mounting and termination options are available?

Panel mount with push-on 0.250 tab quick-connect termination.

What agency approvals does this breaker carry?

CCC, CSA, and UL1077.

Category	Circuit Breakers
Manufacturer Name	Littelfuse Inc.
Actuator Type	Rocker
Approval Agency	CCC, CSA, UL1077
Breaker Type	Magnetic (Hydraulic Delay)
Current Rating	10 A
Current Rating (Amps)	10A
Illumination	None
Mounting Type	Panel Mount
Number of Poles	1
Termination Style	Push-On 0.250 Tab (Q.C.)
Voltage Rating	250 V
