| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 20 and 40 MHz Wi-Fi channels | |
| Antenna Type | |
| Data Rate | |
| Dual-mode Bluetooth classic and Bluetooth Low Energy 5.2 | |
| Dual-mode Bluetooth version 5, supporting all features | |
| Frequency | |
| Micro Access Point [max connects] 8 | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Programmed MAC address | |
| Protocol | |
| RF Family | |
| RF calibration in OTP | |
| Serial Interfaces | |
| Storage Temperature | |
| Support for long range Bluetooth Low Energy and rate up to 2 Mbit/s | |
| Tape & Reel | |
| Utilized IC | |
| Variants with PCB-antenna, U.FL connectors, and antenna pins; Supports antenna diversity | |
| Voltage | |
| WPA3 | |
| Wi-Fi 4 (802.11a/b/g/n) dual-band 2.4 and 5 GHz | |
| Wi-Fi 4, dual-band, single stream, data rate up to 150 Mbit/s | |
| Wi-Fi 802.11d/e/h/i/k/r/u/v/w | |
| Wi-Fi direct |

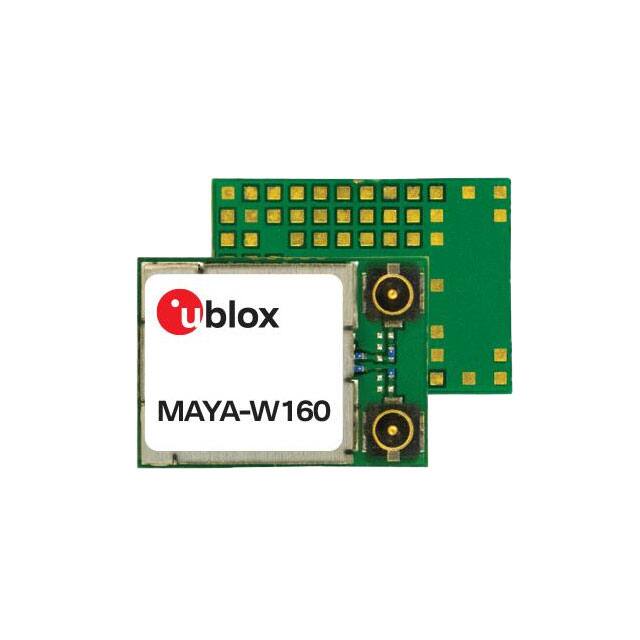

The MAYA-W160-00B from u-blox is a highly integrated, host-based multiradio module designed for demanding industrial applications. It combines Wi-Fi 4 (802.11a/b/g/n) and Bluetooth 5.2 capabilities within a small form factor.
This module operates on dual bands, 2.4 GHz and 5 GHz, delivering Wi-Fi data throughput up to 150 Mbps. It supports various Wi-Fi operation modes including Access-point, Station, and Wi-Fi Direct. The integrated Bluetooth 5.2 offers dual-mode classic and Low Energy support, with features for long-range communication and data rates up to 2 Mbps.
Key features include a wide operating temperature range from -40°C to +85°C, multiple serial interfaces (UART, SDIO, PCM, I2S), and support for advanced security protocols like WPA3. The MAYA-W160-00B is based on the NXP IW416 radio chip and is suitable for applications requiring reliable wireless connectivity.
Designed for surface mounting, the module utilizes a 76-LGA package and features a U.FL antenna connector, supporting antenna diversity. Its compact size and robust design make it ideal for industrial automation, smart manufacturing, EV charging, and healthcare devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAYA-W160-00B supports Wi-Fi 4 standards including 802.11a/b/g/n.
The module features Bluetooth version 5.2, supporting both classic and Low Energy modes.
The Wi-Fi data rate can reach up to 150 Mbps.
The module operates within a temperature range of -40°C to +85°C.
The module is equipped with a U.FL antenna connector.
The module supports WPA3 security protocols.
The MAYA-W160-00B comes in a 76-LGA Module package and is designed for surface mounting.
