Mfr Part #:

MAXREFDES98#

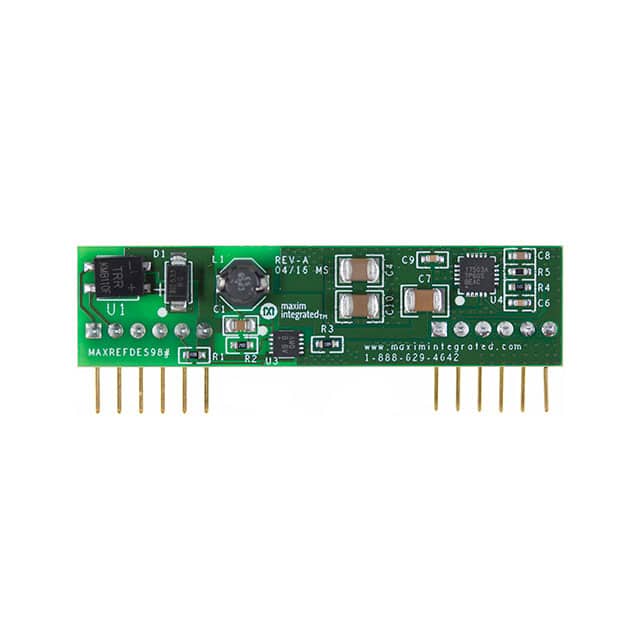

Name: MAXREFDES98#
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAXREFDES98#

Description:

REF DESIGN POE MAX5969A MAX17503

Stock on Request

MAXREFDES98# Description

Short technical summary and product information.

REF DESIGN POE MAX5969A MAX17503

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

MAXREFDES98EV#

Analog Devices Inc./Maxim Integrated

REF DESIGN POE MAX5969A MAX17503

Category	Evaluation Boards - DCDC & ACDC (Off-Line) SMPS
Manufacturer Name	Analog Devices Inc./Maxim Integrated
Board Type	Fully Populated
Current	2.5A
Frequency	300kHz
Main Purpose	Special Purpose DC/DC, Power Over Ethernet
Outputs and Type	1, Non-Isolated
Power	12.5 W
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC	MAX5969A, MAX17503
Voltage	36V ~ 57V
