The MAXM17543ALJ+ is a non-isolated step-down power module from Analog Devices' Himalaya series. It integrates a switching controller, dual MOSFETs, an inductor, and compensation components into a compact 29-pin SiP package measuring 15.0mm x 9.0mm x 2.8mm. The module operates over a wide input voltage range of 4.5V to 42V and provides an adjustable output from 0.9V to 12V at up to 2.5A continuous current.
It supports multiple control schemes including PWM, PFM, and DCM, with an adjustable switching frequency from 100kHz to 1.8MHz. Protection features include overcurrent protection (OCP), overtemperature protection (OTP), undervoltage lockout (UVLO), and hiccup mode overload protection. A programmable soft-start and RESET output for voltage monitoring are also included.
The module is designed for surface mount assembly and operates over an industrial temperature range of -40°C to +125°C. It is suitable for applications such as industrial power supplies, distributed supply regulation, and FPGA/DSP point-of-load regulation.
| Qty | Low | High |
|---|---|---|
| 60+ | $12.37 | $12.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 42V.
The output voltage is adjustable from 0.9V to 12V, and the maximum continuous output current is 2.5A.
The operating temperature range is -40°C to +125°C.

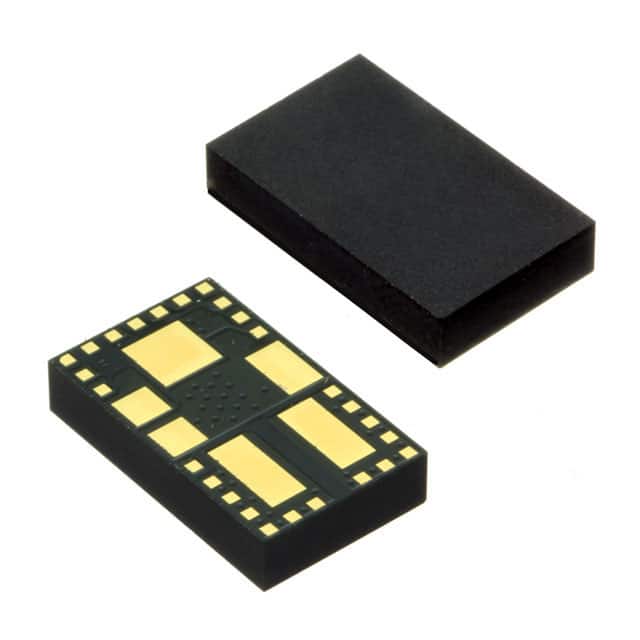

It comes in a 29-SMD Module with exposed pad, measuring 15.0mm x 9.0mm x 2.8mm.
It includes overcurrent protection (OCP), overtemperature protection (OTP), undervoltage lockout (UVLO), and hiccup mode overload protection.
It supports PWM, PFM, and DCM control schemes.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
