The MAX9986ETP+T is a high-linearity downconversion mixer designed for base-station receiver applications. It provides 10dB of conversion gain, a noise figure of 9.3dB, and an input IP3 of +23.6dBm.
This mixer operates within an RF frequency range of 815MHz to 995MHz and an LO frequency range of 960MHz to 1180MHz, making it suitable for high-side LO injection receiver architectures. It features integrated components including a double-balanced passive mixer core, an IF amplifier, a dual-input LO selectable switch, and an LO buffer. On-chip baluns allow for single-ended RF and LO inputs.
The device requires a nominal LO drive of 0dBm and has a maximum supply current of 265mA. It is available in a compact 20-pin, 5mm x 5mm QFN package with an exposed paddle, suitable for surface mounting. Electrical performance is guaranteed over an extended temperature range of -40°C to +85°C.
Applications include 850MHz W-CDMA, GSM 850/900, cdmaOne, cdma2000, iDEN base stations, predistortion receivers, fixed broadband wireless access, and military systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.77 | $5.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX9986ETP+T operates at a nominal voltage of 5V.

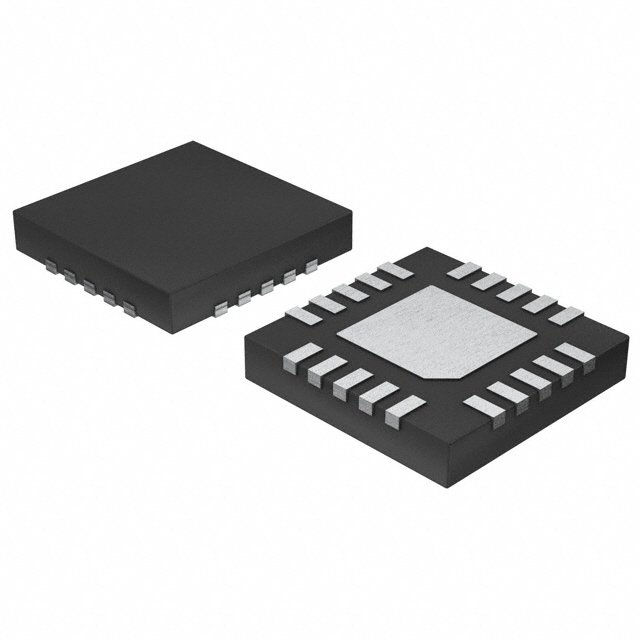

The MAX9986ETP+T comes in a 20-WQFN exposed pad package.
The device operates within a temperature range of -40°C to +85°C.
Yes, the MAX9986ETP+T is RoHS3 compliant.
