| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,873 pcs
|
32873 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Supplier Device Package | |
| Supply Voltage |

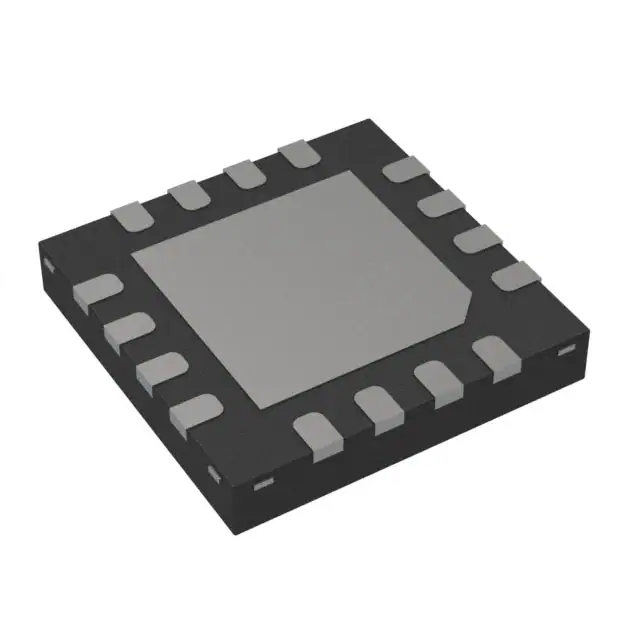

The MAX9947ETE+T is an RF Transceiver IC manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for RF/IF and RFID applications, specifically functioning as a TxRx Only device.
Key electrical specifications include an operating frequency of 2.176MHz and a maximum data rate of 115.2kbps. It offers an output power of 12dBm. The device operates within a supply voltage range of 3V to 5.5V, drawing 23mA for both receiving and transmitting.
This IC is designed for surface mounting and comes in a 16-WFQFN Exposed Pad package, with a supplier device package of 16-TQFN (3x3). The operating temperature range is -40°C to 85°C.
The MAX9947ETE+T is RoHS3 Compliant and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 2.176MHz.
The maximum data rate is 115.2kbps.
The output power is 12dBm.
The supply voltage range is 3V to 5.5V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 16-WFQFN Exposed Pad package.
