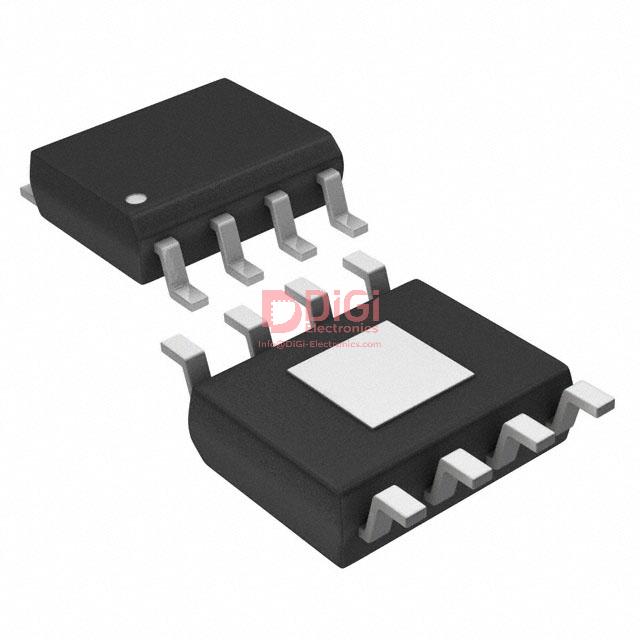

MAX9920ASA/V+ The MAX9920ASA/V+ from Analog Devices is a Current Sense Amplifier designed for high-performance applications. It features a Rail-to-Rail output and operates within a supply voltage range of 4.5V to 5.5V.
Mfr Part #:

MAX9920ASA/V+

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX9920ASA/V+ from Analog Devices is a Current Sense Amplifier designed for high-performance applications. It features a Rail-to-Rail output and operates within a supply voltage range of 4.5V to 5.5V.
✓ Total Stock: 2,500 pcs
$ Price Range: $12.26

MAX9920ASA/V+ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX9920ASA/V+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Lead Spacing
Mounting Type
Operating Temperature
Output Type
Slew Rate
Storage Temperature
Supply Current
View Similar Products (0)

MAX9920ASA/V+ Description

Short technical summary and product information.

The MAX9920ASA/V+ is a current sense amplifier from Analog Devices, suitable for various instrumentation and automotive applications. It offers a single-circuit design with a Rail-to-Rail output, ensuring efficient signal processing.



Key electrical specifications include a slew rate of 1.5V/µs and a -3dB bandwidth of 230 kHz. The device operates with an input bias current of 175 µA and an input offset voltage of 480 µV. It requires a supply current of 1mA and can deliver an output current of 44 mA per channel.



The operating voltage range for this amplifier is between 4.5V and 5.5V, with an operating temperature range of -40°C to 125°C. It is qualified for automotive applications and meets the AEC-Q100 standard.



Packaged in an 8-SOIC (Exposed Pad) surface-mount configuration, the MAX9920ASA/V+ is designed for reliable integration into electronic circuits. The standard package quantity is 100 units.

MAX9920ASA/V+ Quick Information

Product Type: Current Sense Amplifier
Canonical Name: MAX9920ASA/V+ Current Sense Amplifier
Subcategory: Current Sense Amplifier

MAX9920ASA/V+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX9920ASA/V+ Estimated Pricing

Qty Low High
1+ $12.26 $12.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX9920ASA/V+ Features

  • Single-channel current sense amplifier.
  • Rail-to-Rail output for signal integrity.
  • Wide operating voltage from 4.5V to 5.5V.
  • Automotive qualified (AEC-Q100).
  • Surface mount 8-SOIC package.

MAX9920ASA/V+ Applications

  • Ideal for current monitoring circuits.
  • Suitable for automotive systems.
  • Used in power management applications.
  • Instrumentation and control systems.

MAX9920ASA/V+ FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MAX9920ASA/V+?

The MAX9920ASA/V+ operates within a supply voltage span of 4.5V to 5.5V.

What is the operating temperature range for the MAX9920ASA/V+?

The operating temperature range for the MAX9920ASA/V+ is -40°C to 125°C.

What package type is the MAX9920ASA/V+ available in?

The MAX9920ASA/V+ is available in an 8-SOIC (0.154", 3.90mm Width) Exposed Pad package.
