| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,436 pcs
|
2436 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Output Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type |

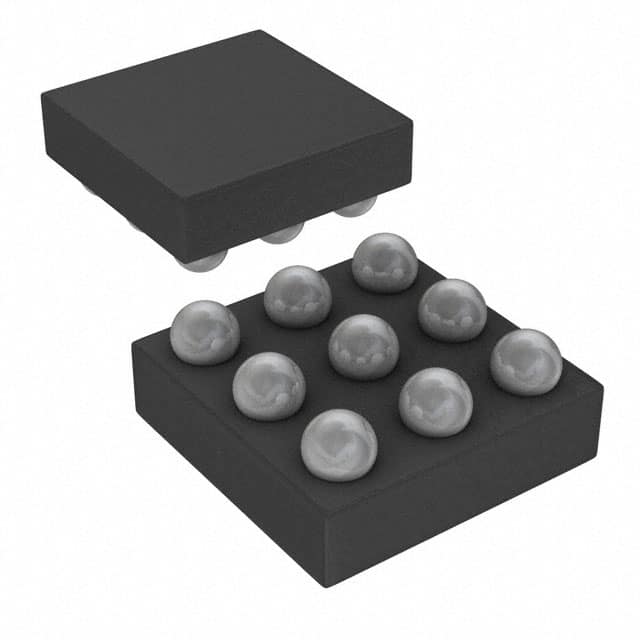

The MAX98309EWL+T is a mono Class AB audio amplifier IC manufactured by Analog Devices / Maxim Integrated. It is designed for audio amplification applications, delivering up to 2.7W of output power into a 4-ohm load.
This amplifier operates over a wide supply voltage range of 2.5V to 5.5V, making it suitable for various portable and battery-powered devices. Key features include depop functionality, differential inputs, and integrated short-circuit and thermal protection, along with a shutdown mode for power saving.
The device is available in a compact 9-WFBGA, WLBGA package, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.5V to 5.5V.
The package is 9-WFBGA, WLBGA (9-WLP).
The operating temperature range is -40°C to 85°C.
The maximum output power is 2.7W into 4 ohms.
It includes depop, differential inputs, short-circuit and thermal protection, and shutdown.
It is a single-channel (mono) amplifier.
Surface mount.
