| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,321 pcs
|
1321 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,151 pcs
|
1151 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Contact Plating | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Number of Pins | |
| Number of Terminations | |
| Operating Temperature | |
| Output Power | |
| Output Type | |
| Technology | |
| Type | |
| Width |
The Analog Devices MAX98300ETA+T is a Class D audio amplifier designed for various audio applications. It delivers a maximum output power of 2.6W into a 4 Ohm load, operating within a supply voltage range of 2.6V to 5.5V.
Key electrical specifications include a nominal supply current of 2mA, a bandwidth of 22 kHz, and a voltage gain of 12dB. The amplifier also features a Common Mode Rejection Ratio of 50 dB and a Power Supply Rejection Ratio (PSRR) of 70dB. It includes features such as Depop, Differential Inputs, Short-Circuit and Thermal Protection, and Shutdown.

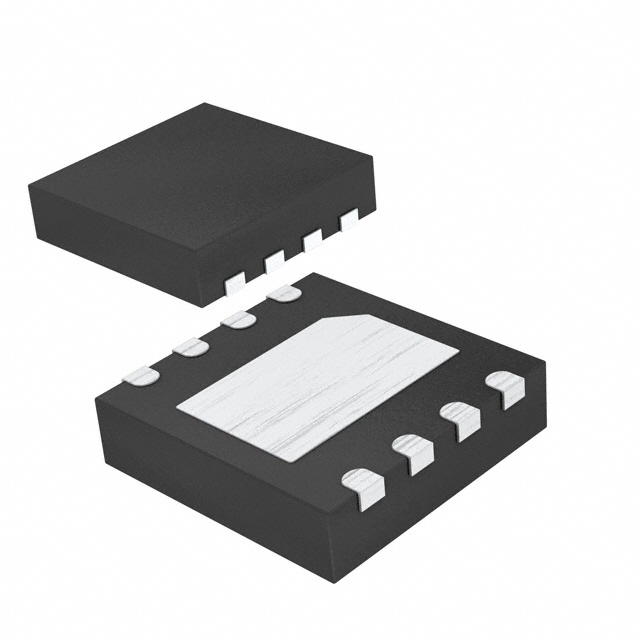

This component is housed in an 8-WFDFN Exposed Pad surface mount package, with a terminal pitch of 0.5mm. The operating temperature range is specified from -40°C to 85°C TA. The device is recommended for tape and reel packaging.
Applications for the MAX98300ETA+T include signal amplification, weak signal detection, and use in video and image computer boards, as well as medical instruments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.6V to 5.5V.
-40°C to 85°C ambient temperature.
8-WFDFN exposed pad surface mount package.
2.6W into a 4 Ohm load.
1-channel (mono) Class D amplifier.
Short-circuit protection, thermal protection, and shutdown.
