| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,283 pcs
|
3283 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Hysteresis | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Propagation Delay (Max) | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The MAX976EUA-T from Analog Devices is a dual, high-speed, low-power comparator designed for 3V and 5V single-supply systems. It achieves a rapid 20ns propagation delay while consuming minimal power, typically 225µA per comparator.
This comparator features ground-sensing inputs and rail-to-rail outputs, eliminating the need for external pullup circuitry and making it suitable for interfacing with CMOS/TTL logic. The internal hysteresis ensures clean output switching, even with slow input signals. All inputs and outputs can tolerate continuous short-circuit conditions to either rail.
Available in a space-saving 8-pin uMAX/uSOP package, the MAX976EUA-T is ideal for battery-powered systems, threshold detectors, and digital line receivers. It operates over a temperature range of -40°C to +85°C and supports single-supply operation down to 2.7V.
Key electrical characteristics include a maximum propagation delay of 28ns, a maximum quiescent current of 650µA, and a typical input offset voltage of 2mV at 5V. The device is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical propagation delay for the MAX976EUA-T comparator is 20ns.
The MAX976EUA-T operates with a single supply voltage ranging from 2.7V to 5.5V.
The MAX976EUA-T operates within a temperature range of -40°C to +85°C.

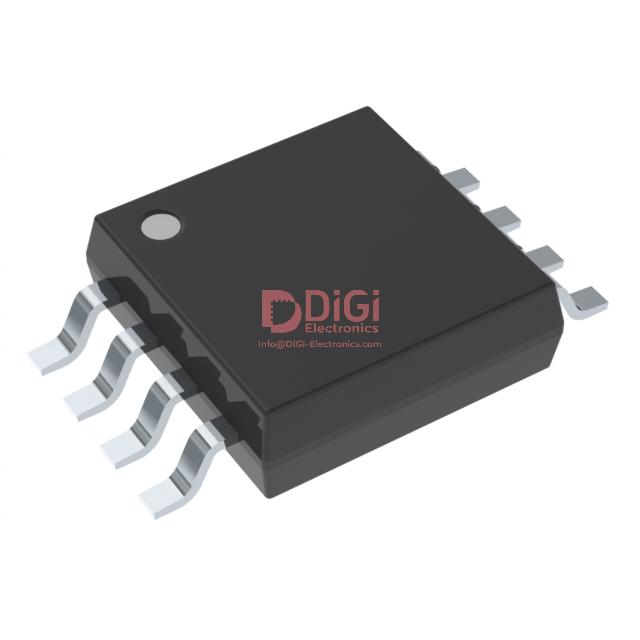

The MAX976EUA-T is available in an 8-uMAX/uSOP package, specifically an 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) configuration, and is surface mountable.
The MAX976EUA-T is RoHS3 Compliant.
