| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,123 pcs
|
3123 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Type |

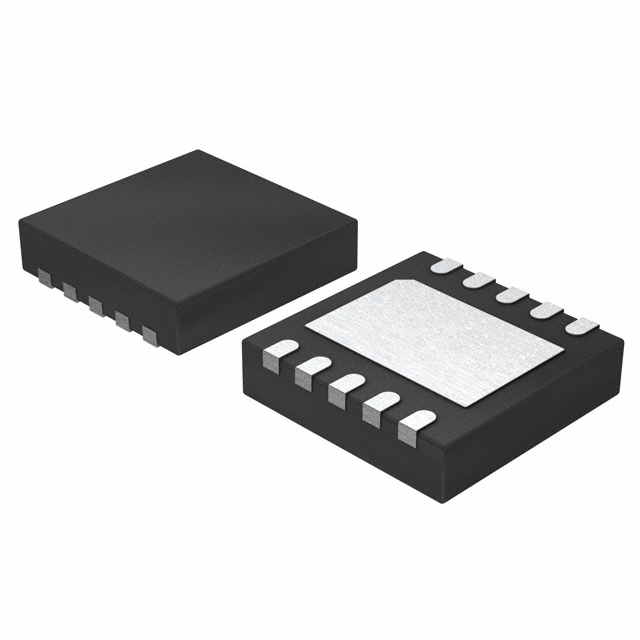

The MAX9705CETB+T is a Class D audio amplifier IC manufactured by Analog Devices / Maxim Integrated. This amplifier is designed for 1-channel (mono) output and can deliver up to 2.3W into a 4-ohm load. It operates within a wide supply voltage range of 2.5V to 5.5V, making it suitable for various portable and battery-powered applications.
The device features include depop, differential inputs, and integrated short-circuit and thermal protection, along with a shutdown mode for power management. It is housed in a 10-TDFN (3x3) package and is designed for surface mount installation. The operating temperature range is from -40°C to 85°C (TA).
This amplifier is categorized under Integrated Circuits (ICs) and specifically within Linear - Amplifiers - Audio Amplifiers. The product status is listed as 'Not For New Designs', indicating it may be nearing the end of its lifecycle.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX9705CETB+T provides a maximum output power of 2.3W into a 4-ohm load.
The operating supply voltage range for the MAX9705CETB+T is from 2.5V to 5.5V.
The MAX9705CETB+T is a Class D audio amplifier.
The operating temperature range for the MAX9705CETB+T is -40°C to 85°C (TA).
The MAX9705CETB+T is supplied in a 10-TDFN (3x3) package, with a package/case designation of 10-WFDFN Exposed Pad.
The MAX9705CETB+T is designed for surface mount installation.
