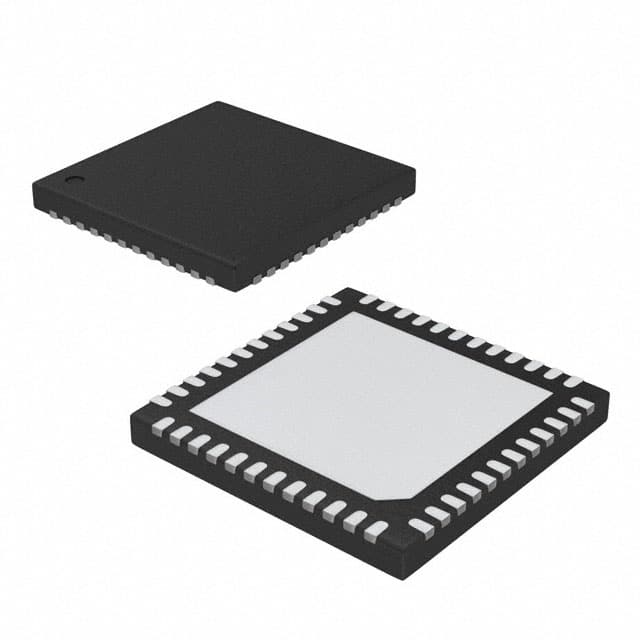

MAX9595CTM+T The MAX9595CTM+T is an Audio, Video Switch IC from Analog Devices Inc./Maxim Integrated. It features 2 channels and a bandwidth of 230MHz.
Mfr Part #:

MAX9595CTM+T

Available from 1 distributors
Mfr Name: MAX
MAX
The MAX9595CTM+T is an Audio, Video Switch IC from Analog Devices Inc./Maxim Integrated. It features 2 channels and a bandwidth of 230MHz.
✓ Total Stock: 4,616 pcs

MAX9595CTM+T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
4,616 pcs
On Request
4616 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX9595CTM+T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Channels
Operating Temperature
Package / Case
SVHC Present
Supplier Device Package
View Similar Products (0)

MAX9595CTM+T Description

Short technical summary and product information.

The MAX9595CTM+T is an Audio, Video Switch IC manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for audio and video signal switching applications, featuring 2 channels and a -3dB bandwidth of 230MHz.



It operates with a single supply voltage ranging from 4.75V to 5.25V and is specified for an operating temperature range of 0°C to 70°C. The device is available in a 48-TQFN (7x7) package and is designed for surface mounting.



Environmental compliance includes RoHS3 status. The product is classified under Integrated Circuits (ICs) > Amplifiers > Video Processing.

MAX9595CTM+T Quick Information

Product Type: Audio, Video Switch IC
Canonical Name: MAX9595CTM+T Audio, Video Switch IC
Subcategory: Video Processing

MAX9595CTM+T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX9595CTM+T Features

  • 2-channel audio and video switch IC.
  • 230MHz bandwidth for signal processing.
  • Operates on a 4.75V to 5.25V single supply.
  • Surface mount 48-TQFN (7x7) package.
  • 0°C to 70°C operating temperature range.

MAX9595CTM+T Applications

  • Suitable for audio signal switching.
  • Designed for video signal switching.
  • Integrates RGB and SCART signals.
  • Utilizes I²C for control.

MAX9595CTM+T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the MAX9595CTM+T?

The MAX9595CTM+T operates on a single supply voltage between 4.75V and 5.25V.

What is the bandwidth of the MAX9595CTM+T?

The -3dB bandwidth for the MAX9595CTM+T is 230MHz.

What is the operating temperature range for the MAX9595CTM+T?

The MAX9595CTM+T is designed to operate within a temperature range of 0°C to 70°C.

How many channels does the MAX9595CTM+T support?

The MAX9595CTM+T supports 2 channels.

What package type is the MAX9595CTM+T available in?

The MAX9595CTM+T is available in a 48-WFQFN Exposed Pad package, with the supplier device package being 48-TQFN (7x7).

What is the RoHS status of the MAX9595CTM+T?

The MAX9595CTM+T is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MAX9595CTM+T?

The Moisture Sensitivity Level (MSL) for the MAX9595CTM+T is 1 (Unlimited).
