| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,232 pcs
|
7232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| ESD Protection | |
| Input Signal | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Signal | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Translator Type |
The MAX9375EUA+T is a versatile, high-speed, fully differential translator designed for signal rates up to 2GHz. It accepts differential input signals compatible with LVDS, LVPECL, HSTL, and CML standards, providing LVPECL outputs capable of driving 50 Ohm transmission lines.
This device features extremely low propagation delays of 421ps typical and a maximum pulse skew of 30ps, making it ideal for high-speed network routing and backplane applications. It operates from a single +3.3V supply over a temperature range of -40°C to +85°C.

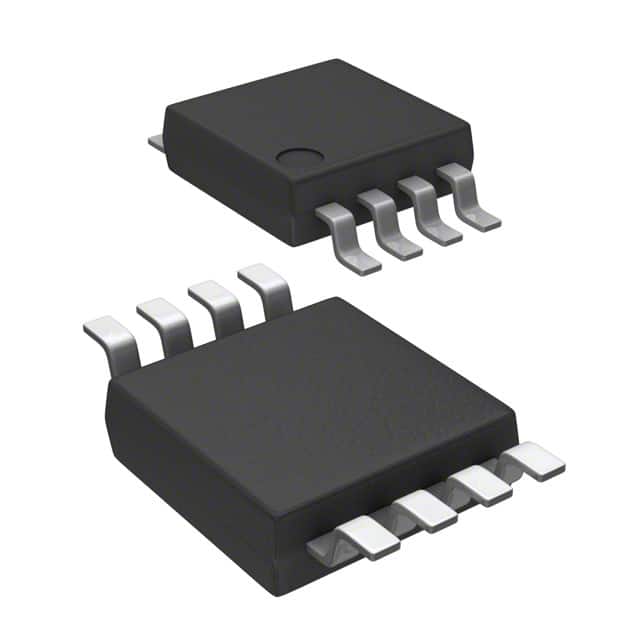

The MAX9375EUA+T is available in an 8-pin µMAX package, suitable for surface mount applications. It requires a minimum differential input amplitude of 100mV to guarantee AC specifications and offers over 2kV ESD protection (Human Body Model).
Key electrical characteristics include a guaranteed 2GHz switching frequency, low random jitter of 2psRMS maximum, and temperature-compensated LVPECL outputs. The device is designed for applications such as backplane logic standard translation, LAN, WAN, DSLAM, and DLC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX9375EUA+T has a guaranteed switching frequency of 2GHz.
The MAX9375EUA+T accepts LVDS, LVPECL, HSTL, and CML differential input signals.
The typical propagation delay for the MAX9375EUA+T is 421ps.
The MAX9375EUA+T operates in a temperature range of -40°C to 85°C.
The MAX9375EUA+T is supplied in an 8-pin µMAX package.
