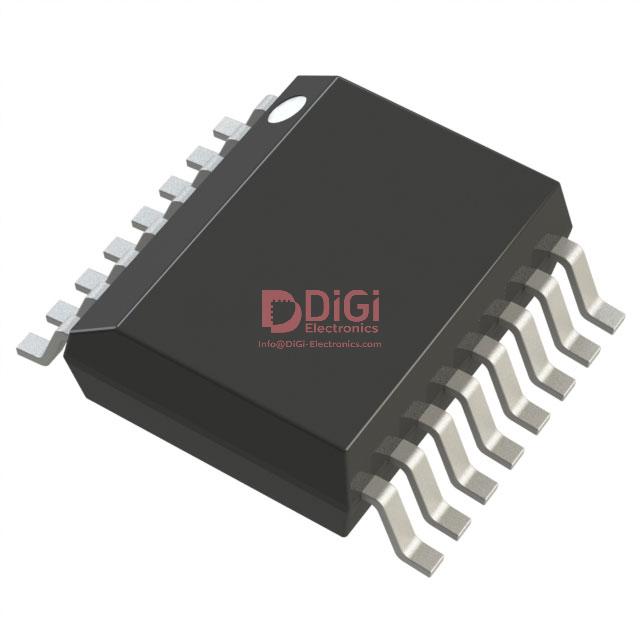

MAX934ESE-T The Analog Devices MAX934ESE-T is a quad comparator with a voltage reference, designed for general-purpose applications. It features TTL/CMOS outputs and a 12µs propagation delay.
Mfr Part #:

MAX934ESE-T

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX934ESE-T is a quad comparator with a voltage reference, designed for general-purpose applications. It features TTL/CMOS outputs and a 12µs propagation delay.
✓ Total Stock: 16,436 pcs
$ Price Range: $0.36

MAX934ESE-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
16,436 pcs
On Request
16436 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX934ESE-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
CMRR, PSRR (Typ)
Current
Hysteresis
Lead Spacing
Mounting Type
Number of Elements
Operating Temperature
Output Type
Propagation Delay (Max)
Supplier Device Package
Tape & Reel
Type
Voltage
Voltage Reference
View Similar Products (0)

MAX934ESE-T Description

Short technical summary and product information.

The Analog Devices MAX934ESE-T is a quad comparator IC featuring an integrated voltage reference. It is designed for general-purpose applications and offers TTL/CMOS compatible outputs.



Key electrical specifications include a maximum quiescent current of 4µA (for MAX931), a supply voltage range of +2.5V to +11V single or ±1.25V to ±5V dual, and an internal 1.182V ±2% voltage reference. The propagation delay is typically 12µs with a 10mV overdrive, and it can source up to 40mA continuously.



This comparator operates over an extended temperature range of -40°C to 85°C. It is available in a space-saving 16-SOIC package, suitable for surface mounting.



Applications for this device include battery-powered systems, threshold detectors, window comparators, oscillator circuits, and alarm circuits.

MAX934ESE-T Quick Information

Product Type: Comparator
Canonical Name: MAX934ESE-T Quad Comparator with Voltage Reference
Subcategory: Comparators

MAX934ESE-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX934ESE-T Estimated Pricing

Qty Low High
1+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX934ESE-T Features

  • Quad comparator with voltage reference
  • Ultra-low quiescent current
  • TTL/CMOS compatible outputs
  • 12µs typical propagation delay
  • Surface mount 16-SOIC package

MAX934ESE-T Applications

  • Battery-powered systems
  • Threshold detectors
  • Window comparators
  • Oscillator circuits
  • Alarm circuits

MAX934ESE-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the MAX934ESE-T?

The operating temperature range for the MAX934ESE-T is -40°C to 85°C.

What type of package is the MAX934ESE-T in?

The MAX934ESE-T is available in a 16-SOIC package.

What is the typical propagation delay of the MAX934ESE-T?

The typical propagation delay for the MAX934ESE-T is 12µs with a 10mV overdrive.

What are the output types for the MAX934ESE-T?

The MAX934ESE-T features CMOS and TTL compatible outputs.

How many comparators are in the MAX934ESE-T?

The MAX934ESE-T contains 4 comparator elements.

What is the supply voltage range for the MAX934ESE-T?

The MAX934ESE-T can operate from a single supply of +2.5V to +11V or a dual supply of ±1.25V to ±5V.
