| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,873 pcs
|
32873 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Power Consumption | |
| Propagation Delay | |
| Quiescent Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |
The MAX9203EKA-T is a high-speed, low-power comparator from Analog Devices / Maxim Integrated, featuring a single element with TTL logic outputs and an active internal pullup. Its fast 7ns propagation delay makes it suitable for applications such as A/D converters, sampling circuits, and line receivers.
This comparator includes output latches with TTL-compatible inputs, allowing the output states to be held when latch inputs are driven low. It can be powered from separate analog and digital supplies or a single combined supply. The analog input common-mode range includes the negative rail, enabling ground sensing when using a single supply. The device consumes low power, approximately 9mW per comparator when powered from a +5V supply.
The MAX9203EKA-T is available in a space-saving 8-pin SOT-23 package, ideal for designs where board space is limited. It operates within a temperature range of -40°C to +85°C, making it suitable for various environmental conditions. The device supports flexible supply voltages, including single +5V to +10V or dual ±2.375V to ±5.75V.
Key electrical characteristics include a maximum input offset voltage of 4mV at ±5V and a maximum input bias current of 5µA at ±5V. Typical CMRR and PSRR are 86.02dB. The MAX9203EKA-T is designed for applications requiring fast signal discrimination and restoration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical propagation delay is 7ns at 5mV overdrive.
The typical power consumption is 9mW per comparator when powered from a +5V supply.
The operating temperature range is -40°C to +85°C.

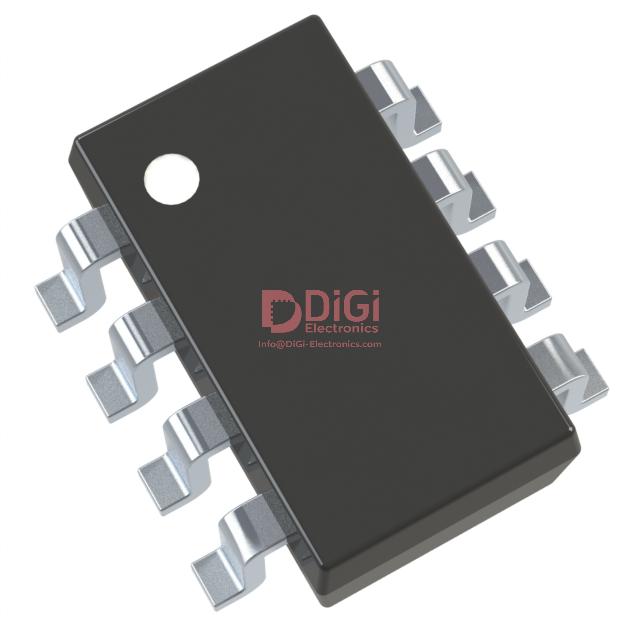

The MAX9203EKA-T is available in a SOT-23-8 package.
Yes, the MAX9203EKA-T is a comparator with a latch.
The output type is TTL.
It supports single supply voltages from +4.75V to +10.5V and dual supply voltages from ±2.375V to ±5.75V.
