| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
426 pcs
|
426 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Propagation Delay (Max) |
The MAX9118EXK-T from Maxim is a single comparator with an integrated voltage reference, designed for efficient operation. It supports a wide supply voltage range from 1.6V to 5.5V, making it versatile for various applications.
Key electrical characteristics include a maximum propagation delay of 45µs and a low quiescent current of 1.6µA. The input offset voltage is a maximum of 5mV at 5V, with a minimal input bias current of 0.001µA at 5V. The output type is open-drain, and it offers a typical output current of 50mA. The device also features a typical CMRR/PSRR of 80dB and a hysteresis voltage of 4mV.

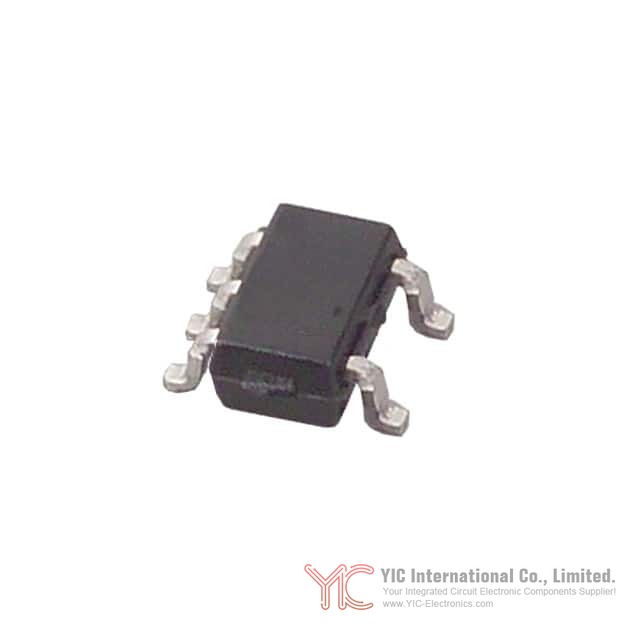

This comparator is housed in a compact SC-70-5 surface-mount package, suitable for space-constrained designs. It operates within a temperature range of -40°C to 85°C. The MAX9118EXK-T is part of Maxim's Beyond-the-Rails™ series, indicating its capability to operate at or near the supply rails.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX9118EXK-T operates with a single supply voltage ranging from 1.6V to 5.5V.
The maximum propagation delay for the MAX9118EXK-T is 45µs.
The maximum quiescent current for the MAX9118EXK-T is 1.6µA.
The maximum input offset voltage is 5mV at 5V.
The MAX9118EXK-T operates within a temperature range of -40°C to 85°C.
The MAX9118EXK-T is available in a SC-70-5 package.
