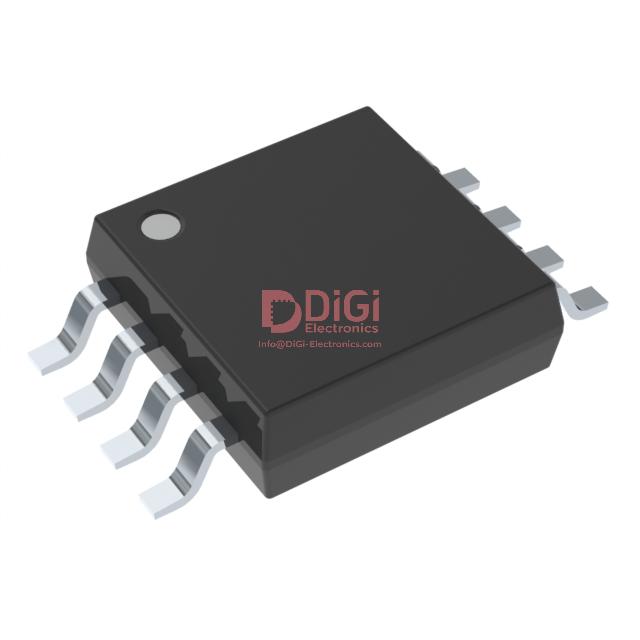

MAX9052BEUA The MAX9052BEUA is a dual comparator with an integrated voltage reference from Analog Devices Inc. It operates from a 2.7V to 5.5V supply and features rail-to-rail outputs.
Mfr Part #:

MAX9052BEUA

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX9052BEUA is a dual comparator with an integrated voltage reference from Analog Devices Inc. It operates from a 2.7V to 5.5V supply and features rail-to-rail outputs.
✓ Total Stock: 13,908 pcs
$ Price Range: $0.36

MAX9052BEUA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
13,908 pcs
On Request
13908 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX9052BEUA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
CMRR, PSRR (Typ)
Current
Current - Quiescent (Max)
Hysteresis
Lead Spacing
Mounting Type
Number of Elements
Operating Temperature
Output Type
Propagation Delay (Max)
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

MAX9052BEUA Description

Short technical summary and product information.

The MAX9052BEUA is a dual comparator IC featuring an integrated precision voltage reference, manufactured by Analog Devices Inc. This component is designed for single-supply operation within a voltage range of 2.7V to 5.5V, making it suitable for various 3V and 5V systems. It offers rail-to-rail inputs and outputs, with a typical input offset voltage of 1mV and a low input bias current of 1pA.



The device boasts a propagation delay of 450ns and includes internal hysteresis of ±3mV to ensure clean output switching. The output stage is CMOS, push-pull, rail-to-rail, and TTL compatible, capable of sourcing and sinking 8mA. The quiescent current is typically 130µA.



Packaged in an 8-TSSOP or 8-MSOP configuration, the MAX9052BEUA is designed for surface mounting. Its combination of low power consumption, precision reference, and comparator functionality makes it ideal for applications such as precision battery management, window comparators, and level translators.

MAX9052BEUA Quick Information

Product Type: Comparator
Canonical Name: MAX9052BEUA Dual Comparator with Voltage Reference
Subcategory: Comparator

MAX9052BEUA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX9052BEUA Estimated Pricing

Qty Low High
1+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX9052BEUA Features

  • Dual comparator with integrated voltage reference.
  • Operates from 2.7V to 5.5V single supply.
  • 450ns maximum propagation delay.
  • Rail-to-rail inputs and outputs.
  • Surface mountable 8-TSSOP/8-MSOP package.

MAX9052BEUA Applications

  • Precision battery management circuits.
  • Window comparator applications.
  • Level translation tasks.
  • IR receiver systems.

MAX9052BEUA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MAX9052BEUA?

The MAX9052BEUA operates from a 2.7V to 5.5V single supply.

What package type is the MAX9052BEUA available in?

The MAX9052BEUA is available in an 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) package.

What is the operating temperature range for the MAX9052BEUA?

The operating temperature range for the MAX9052BEUA is -40°C to 85°C.

What is the propagation delay of the MAX9052BEUA comparator?

The maximum propagation delay for the MAX9052BEUA is 450ns.

Does the MAX9052BEUA have hysteresis?

Yes, the MAX9052BEUA has an internal hysteresis of ±3mV.
