| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78,609 pcs
|
78609 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Hysteresis | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Quiescent Current | |
| Supplier Device Package | |
| Supply Voltage | |
| Type |
The MAX9031AUK is a general-purpose comparator manufactured by Analog Devices, Inc. This component features a push-pull, rail-to-rail output type, making it suitable for various signal conditioning applications.
Key electrical specifications include a supply voltage range of 2.5V to 5.5V, a maximum input offset voltage of 1mV at 5V, and a low input bias current of 0.008µA at 5V. The quiescent current is a maximum of 55µA, with typical CMRR and PSRR ratings of 100dB. The propagation delay is specified at a maximum of 228ns, and it includes 4mV of hysteresis.

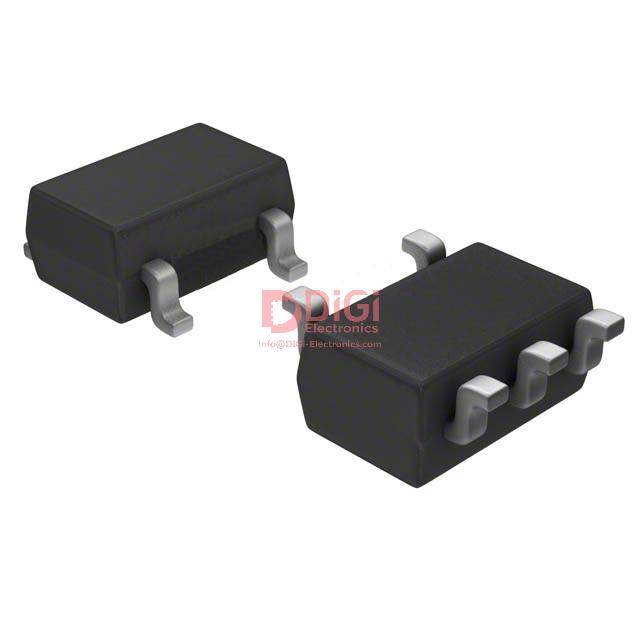

Designed for operation in demanding environments, the MAX9031AUK has an operating temperature range of -40°C to 125°C. It is available in a surface-mount SOT-23-5 package (SC-74A, SOT-753).
This comparator is ideal for applications requiring precise voltage level detection and signal comparison within a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX9031AUK operates from a 2.5V to 5.5V supply.
The operating temperature range is -40°C to 125°C.
It is available in SC-74A and SOT-753 surface-mount packages, specifically the SOT-23-5 supplier device package.
The output is push-pull and rail-to-rail.
The maximum propagation delay is 228ns.
The maximum quiescent current is 55µA.
Yes, it has 4mV internal hysteresis.
