| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,815 pcs
|
27815 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Hysteresis | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Propagation Delay (Max) | |
| Storage Temperature | |
| Supplier Device Package | |
| Supply Current | |
| Tape & Reel | |
| Type | |
| Voltage |

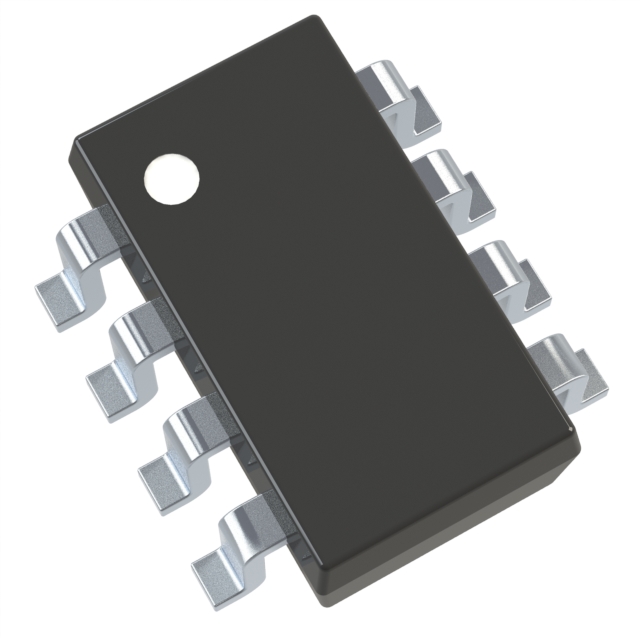

The MAX9022AKA-T is a dual-channel general-purpose comparator designed for low-power applications. It operates from a single supply voltage range of 2.5V to 5.5V, or from dual supplies. This comparator offers a fast propagation delay of 8µs and consumes a low supply current of 5µA maximum.
Key features include internal 4mV hysteresis for noise immunity and rail-to-rail output swing. The device is available in a compact SOT-23-8 surface-mount package, making it suitable for space-constrained designs. Its typical applications include battery-powered systems, sensor signal detection, and threshold detection.
The operating temperature range is -40°C to 125°C. The comparator provides 100dB CMRR and 80dB PSRR, ensuring reliable performance in various environments. The output type is CMOS, Rail-to-Rail, TTL compatible.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The MAX9022AKA-T is available in a SOT-23-8 package.
The maximum propagation delay is 8µs.
The single supply voltage range is 2.5V to 5.5V.
