| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Power Consumption | |
| Propagation Delay | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |
The MAX901BCPE is a high-speed, low-power quad voltage comparator manufactured by Analog Devices (formerly Maxim Integrated). It features differential analog inputs and TTL-logic outputs with active internal pull-ups. With a typical propagation delay of 8ns at 5mV overdrive, it is suitable for fast A/D converters, sampling circuits, line receivers, and V/F converters.
This comparator can be powered from separate analog and digital supplies or a single combined supply. The analog input common-mode range includes the negative rail, enabling ground sensing with a single supply. The MAX901BCPE consumes approximately 18mW per comparator when powered from +5V.

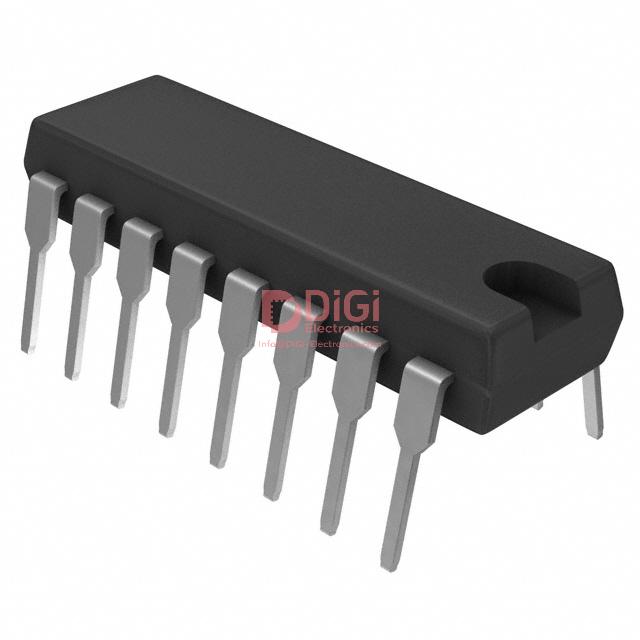

The device is available in a 16-DIP (0.300", 7.62mm) through-hole package. The operating temperature range is 0°C to 70°C. It is important to note that this part is not recommended for new designs due to an unavailable manufacturing process.
Key electrical specifications include a maximum input offset voltage of 4mV at ±5V, a maximum input bias current of 10µA at ±5V, and quiescent currents of 15mA, 12mA, or 6mA. Typical CMRR is 82.5dB and PSRR is 80dB.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the MAX901BCPE is 0°C to 70°C.
The MAX901BCPE has TTL-compatible outputs.
The MAX901BCPE is supplied in a 16-DIP (0.300", 7.62mm) package.
The MAX901BCPE is RoHS3 Compliant.
The typical propagation delay of the MAX901BCPE is 8ns at 5mV overdrive.
The typical power consumption per comparator for the MAX901BCPE is 18mW at +5V.
