| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
512 pcs
|
512 pcs | On Request | 1 | On Request | On Request | 0624+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Hysteresis | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Propagation Delay (Max) | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |

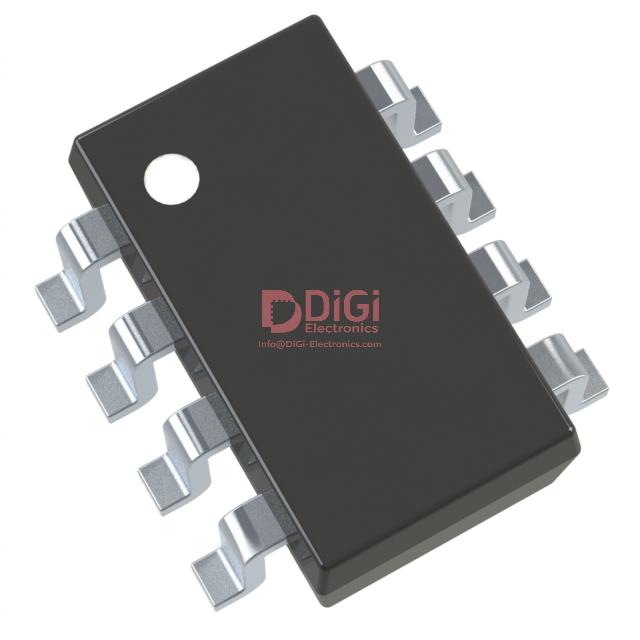

The MAX9017AEKA-T from Analog Devices is a dual nanoPower comparator featuring Beyond-the-Rails™ inputs and guaranteed operation down to 1.8V. This comparator family is ideal for 2-cell battery monitoring and management applications, as well as ultra-low power systems.
Key electrical specifications include a supply voltage range of 1.8V to 5.5V, a maximum input offset voltage of 5mV at 5V, and a typical output current of 50mA. It operates with a low quiescent current of 2.8µA and features 4mV of hysteresis for clean switching. The device offers a typical CMRR/PSRR of 80dB and a maximum propagation delay of 28µs.
Designed for space-saving applications, the MAX9017AEKA-T is housed in an 8-pin SOT-23 package. It features a CMOS, push-pull, rail-to-rail output type. The operating temperature range is -40°C to 85°C.
This comparator is suitable for applications such as threshold detectors, window detectors, sensing at ground or supply lines, telemetry, remote systems, medical instruments, and automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX9017AEKA-T operates from a supply voltage of 1.8V to 5.5V.
The maximum input offset voltage for the MAX9017AEKA-T is 5mV at 5V.
The MAX9017AEKA-T has a hysteresis of 4mV.
The MAX9017AEKA-T operates in a temperature range of -40°C to 85°C.
The MAX9017AEKA-T is supplied in a SOT-23-8 package.
The MAX9017AEKA-T is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MAX9017AEKA-T is 1 Unlimited.
