MAX8869EUE33
MAX
The MAX8869EUE33 is a linear voltage regulator from Analog Devices Inc./Maxim Integrated. It offers a 1A output current and operates within a wide input voltage range.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,032 pcs
|
19032 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | 0847 | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 05+34 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| PSRR |
The MAX8869EUE33 is a linear voltage regulator manufactured by Analog Devices. This component is designed for applications requiring stable voltage regulation, with a maximum input voltage of 5.5V and a maximum output voltage of 5V. It can supply up to 1A of output current with a maximum dropout voltage of 0.35V at 1A.
This device operates within a temperature range of -40°C to 85°C. It is housed in a 16-TSSOP package with an exposed pad, suitable for surface mounting. The quiescent current is typically 2mA, with a maximum supply current of 2.5mA. It also offers a Power Supply Rejection Ratio (PSRR) of 54dB at 100kHz.
Key features include over-current, over-temperature, and short-circuit protection. Control features such as Enable, Reset, and Soft Start are also integrated, making it a versatile component for various power management designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Input voltage maximum is 5.5V. Output voltage is adjustable from 0.8V to 5V.

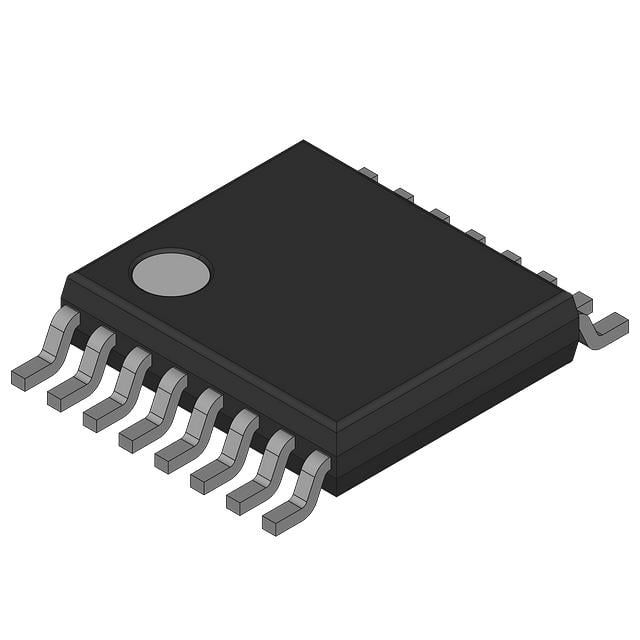

16-TSSOP (0.173, 4.40mm Width) Exposed Pad, surface mount.
-40°C to 85°C (TA).
Maximum dropout voltage is 0.35V at 1A output current.
Typical quiescent current is 2mA.
PSRR is 54dB at 100kHz.
