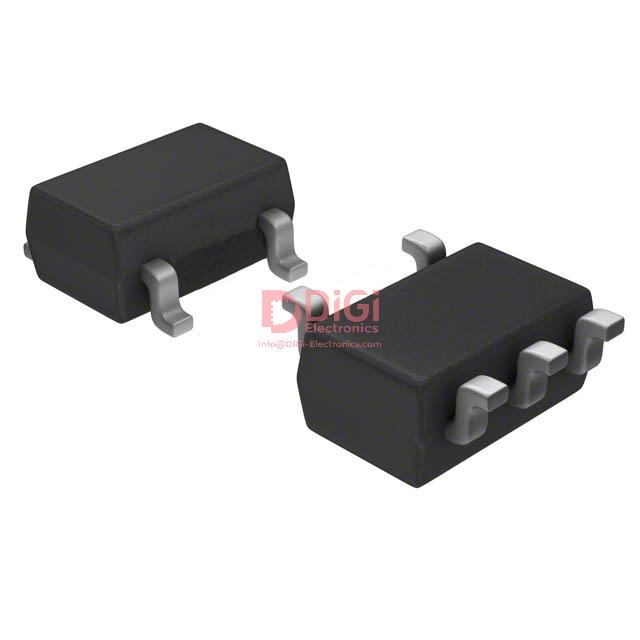

MAX828EUK The MAX828EUK from Analog Devices is a charge pump switching regulator IC designed for efficient voltage inversion. It operates over a wide input voltage range and offers a fixed negative output.
Mfr Part #:

MAX828EUK

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The MAX828EUK from Analog Devices is a charge pump switching regulator IC designed for efficient voltage inversion. It operates over a wide input voltage range and offers a fixed negative output.
✓ Total Stock: 452,000 pcs
$ Price Range: $0.99

MAX828EUK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
452,000 pcs
On Request
452000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX828EUK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Lead Style
Mounting Type
Number of Outputs
Output Type
Tape & Reel
Topology
View Similar Products (0)

MAX828EUK Description

Short technical summary and product information.

The MAX828EUK is a CMOS charge pump voltage inverter from Analog Devices, Inc. It is designed for operation over an input voltage range of 1.15 V to 5.5 V. The device provides an output current capability in excess of 50 mA, though manufacturer data specifies 25 mA. It features a low output resistance of 26 Ohms and a high voltage conversion efficiency of 99.9%. The MAX828EUK requires only two external capacitors for a complete inverter circuit, making it suitable for numerous battery-powered and board-level applications.



This component is available in a space-saving TSOP-5 package, also referred to as SC-74A or SOT-753. The surface mount package is supplied on tape and reel in standard quantities of 3000 units. Its typical applications include LCD panel bias, cellular telephones, pagers, personal digital assistants, electronic games, digital cameras, camcorders, and hand-held instruments.



The MAX828EUK operates with a low current consumption and an internal oscillator frequency of 12 kHz. It is designed to provide a fixed negative output voltage from a positive input voltage. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

MAX828EUK Quick Information

Product Type: Charge Pump Switching Regulator
Series: MAX828
Canonical Name: MAX828EUK Charge Pump Switching Regulator
Subcategory: Charge Pump

MAX828EUK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

MAX828EUK Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX828EUK Features

  • Charge pump voltage inverter IC.
  • Wide input voltage range: 1.15V to 5.5V.
  • Low output resistance: 26 Ohms.
  • High voltage conversion efficiency: 99.9%.
  • Compact TSOP-5 package.

MAX828EUK Applications

  • Ideal for battery-powered devices.
  • Suitable for LCD panel bias.
  • Used in cellular telephones and pagers.
  • Applicable to personal digital assistants.
  • Useful for electronic games and cameras.

MAX828EUK FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the MAX828EUK?

The MAX828EUK operates over an input voltage range of 1.15 V to 5.5 V.

What is the output current capability of the MAX828EUK?

The MAX828EUK has an output current capability in excess of 50 mA, with manufacturer data specifying 25 mA.

What package type is the MAX828EUK available in?

The MAX828EUK is available in a TSOP-5 package, also known as SC-74A or SOT-753.

What is the typical switching frequency of the MAX828EUK?

The typical switching frequency for the MAX828EUK is 12 kHz.

What is the RoHS status of the MAX828EUK?

The MAX828EUK is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MAX828EUK?

The Moisture Sensitivity Level (MSL) for the MAX828EUK is 1 Unlimited.
