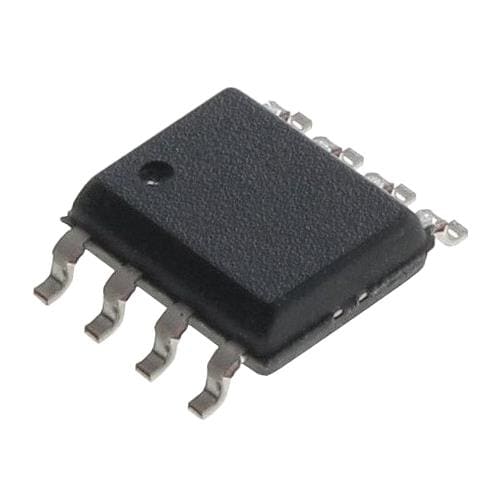

The Analog Devices MAX813LCSA-T is a low voltage supervisor IC. It is designed to monitor system voltage levels and ensure proper operation. The device features a wide operating supply voltage range, from a minimum of 1.1V to a maximum of 5.5V.
Key electrical characteristics include a threshold voltage of 4.65V, an overvoltage threshold of 4.75V, and an undervoltage threshold of 4.5V. It has a power fail detection feature and a watchdog timer with a reset delay of 200 ms. The operating supply current is typically 350 uA, and power dissipation is rated at 471 mW.
This supervisor operates within a temperature range of 0°C to 70°C. Its dimensions are 4 mm in width, 1.5 mm in height, and 5 mm in length, with a unit weight of 540 mg. The mounting style is SMD/SMT, making it suitable for surface-mount applications.
The MAX813LCSA-T offers an accuracy of 2.5% and an active high, push-pull output type. It does not feature chip enable signals or battery backup switching, but it does include a manual reset function. This component is ideal for applications requiring robust voltage monitoring and system reset capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 1.1 V to 5.5 V.
The operating temperature range is 0°C to 70°C.
The threshold voltage is 4.65 V.
The overvoltage threshold is 4.75 V and the undervoltage threshold is 4.5 V.
Yes, it includes a watchdog timer with a reset delay time of 200 ms.
The output type is active high, push-pull.
Yes, it has a manual reset input.
