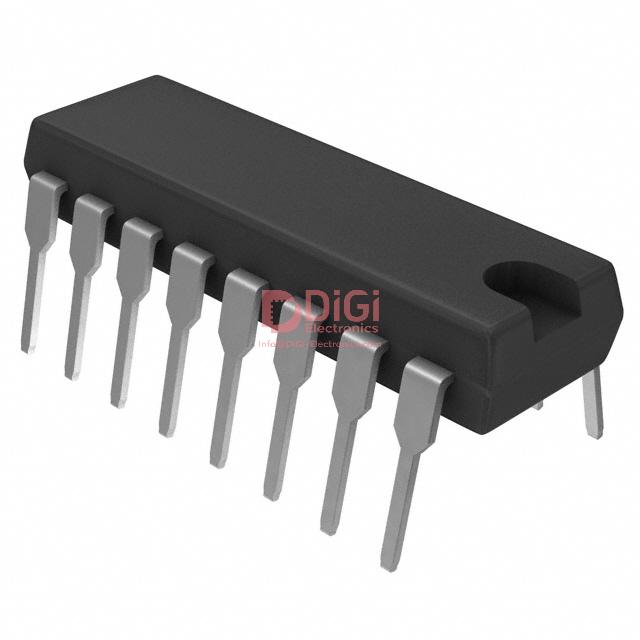

The MAX794CPE+ is a microprocessor supervisory circuit designed for 3.0V/3.3V systems. It provides critical µP power monitoring functions, including adjustable reset trip voltage and guaranteed reset assertion down to 1V.
Key features include backup-battery power switching, allowing battery voltage to exceed VCC, and on-board gating of chip-enable signals with a maximum propagation delay of 7ns. The device also incorporates a watchdog timer with a 1.6s timeout and supports active high/active low reset configurations.
This supervisor circuit is housed in a 16-DIP (0.300", 7.62mm) through-hole package. It is suitable for applications requiring precise power monitoring and system control, such as battery-powered computers, embedded controllers, and portable equipment.
The operating temperature range for the MAX794CPE+ is 0°C to 70°C (TA). It monitors a single voltage and provides an open drain, push-pull output. The reset timeout is a minimum of 140ms.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage monitor is set for 3.0V or 3.3V systems.
0°C to 70°C.
16-DIP (0.300", 7.62mm) and 16-PDIP.
Yes, with a 1.6s timeout.
Active high and active low, open drain or push-pull.
140ms minimum.
Yes, with battery voltage able to exceed VCC.
