The MAX77504AAWE+T is a high-efficiency buck DC-DC switching regulator manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for step-down voltage conversion, operating with an input voltage range from 2.6V to 14V. The output voltage is adjustable, with a minimum of 0.6V and a maximum of 6V, and it can supply a continuous output current of up to 3A.
Key electrical characteristics include a switching frequency that can range from 500kHz to 1.5MHz and the integration of a synchronous rectifier for improved efficiency. The device operates across a wide temperature range of -40°C to 125°C.

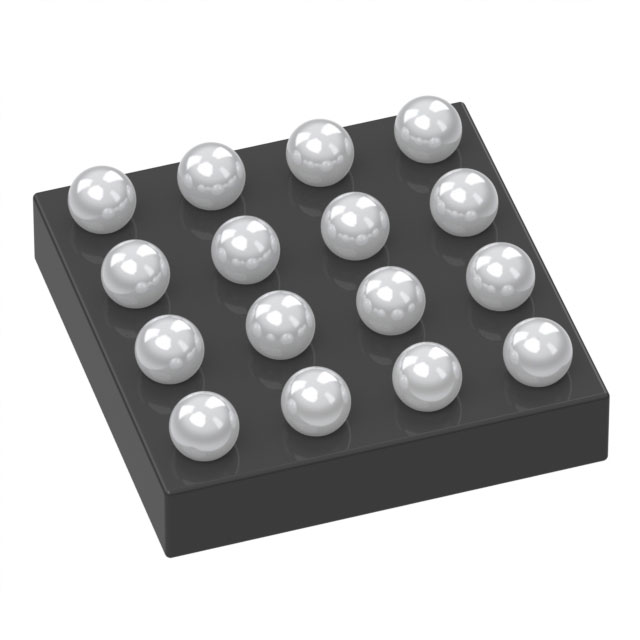

Packaged in a 16-WFBGA, WLBGA surface mount configuration, the MAX77504AAWE+T is suitable for space-constrained applications. Its topology is a buck converter with a positive output configuration, supporting a single output.
Environmental compliance includes RoHS3 compliance and a REACH Unaffected status. The Moisture Sensitivity Level (MSL) is rated at 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.6V to 14V.
The output voltage is adjustable from 0.6V to 6V.
The maximum output current is 3A.
The switching frequency is programmable from 500kHz to 1.5MHz.
Yes, it features synchronous rectification.
The operating temperature range is -40°C to +125°C.
It is available in a 16-WFBGA or WLBGA package.
