| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
709 pcs
|
709 pcs | On Request | 1 | On Request | On Request | 9628P/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Function | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Output Current | |
| Package / Case | |
| Quiescent Current | |
| Topology |
The MAX757CSA is a CMOS step-up DC-DC switching regulator designed for small, low input voltage or battery-powered systems. It accepts a positive input voltage down to 0.7V and generates a higher adjustable output voltage in the range of 2.7V to 5.5V.
Key features include a high switching frequency of up to 500kHz, enabling the use of small surface-mount magnetics. It boasts typical full-load efficiencies greater than 87% and a low quiescent current of 60µA. The device also includes a low-battery detector (LBI/LBO) and a shutdown mode with active reference and LBI detector, drawing only 20µA.
This regulator is suitable for applications requiring 3.3V to 5V step-up conversion, such as palmtop computers, portable data-collection equipment, personal data communicators, medical instrumentation, and battery-operated devices using 2-cell or 3-cell batteries.

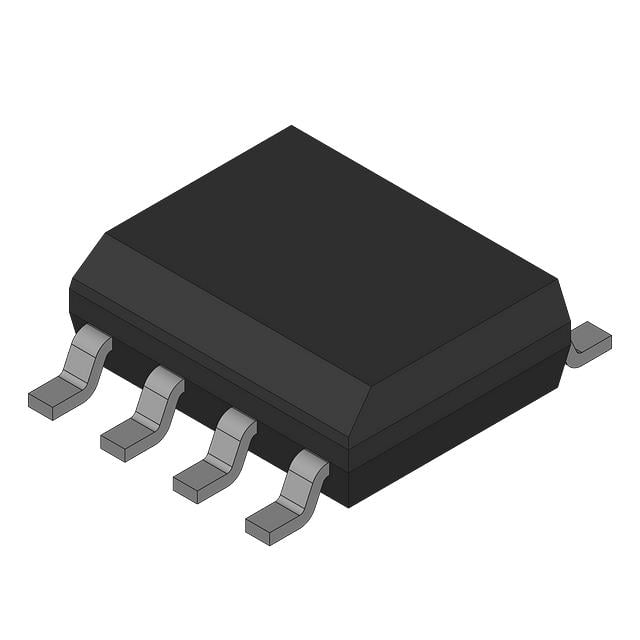

The MAX757CSA is available in an 8-pin SOIC package and is designed for surface mount applications. It operates within a temperature range of 0°C to 70°C.
The MAX757CSA operates from an input voltage as low as 0.7V.
The output voltage can be adjusted from 2.7V to 5.5V.
The MAX757CSA can provide an output current of up to 300mA.
The MAX757CSA has a maximum switching frequency of 500kHz.
The MAX757CSA achieves typical full-load efficiencies greater than 87%.
The MAX757CSA has a quiescent current of 60µA.
The MAX757CSA operates from 0°C to 70°C.
