The Analog Devices MAX742EWP+ is a DC-DC switching controller IC that functions as a boost regulator. It is designed for step-up applications, offering positive or negative output configurations.
This component operates with a supply voltage ranging from 4.2V to 10V and features switching frequencies of 100kHz and 200kHz. The maximum duty cycle is 90%. It includes control features such as frequency control and soft start.

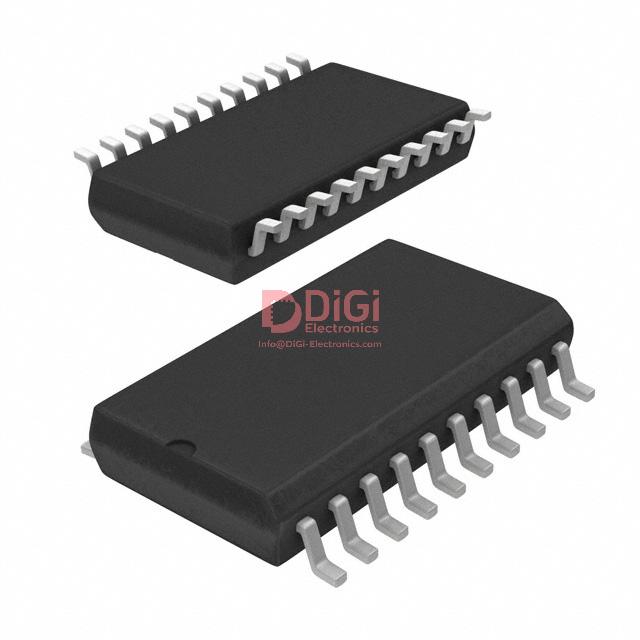

The MAX742EWP+ is housed in a 20-SOIC package and is designed for surface mounting. The operating temperature range is -40°C to 85°C.
Key electrical characteristics include a 4.2V to 10V supply voltage and switching frequencies of 100kHz and 200kHz. The device supports a maximum duty cycle of 90% and offers control features like frequency control and soft start.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.2V to 10V.
The switching frequency is selectable at 100kHz or 200kHz.
The maximum duty cycle is 90%.
The operating temperature range is -40°C to 85°C.
The MAX742EWP is available in a 20-SOIC (0.295", 7.50mm Width) surface-mount package.
The MAX742EWP is a step-up boost switching controller.
The MAX742EWP has two transistor driver outputs.
