| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Filter Order | |
| Filter Type | |
| Lead Style | |
| Mounting Type | |
| Number of Filters | |
| SVHC Present | |
| Voltage Supply |

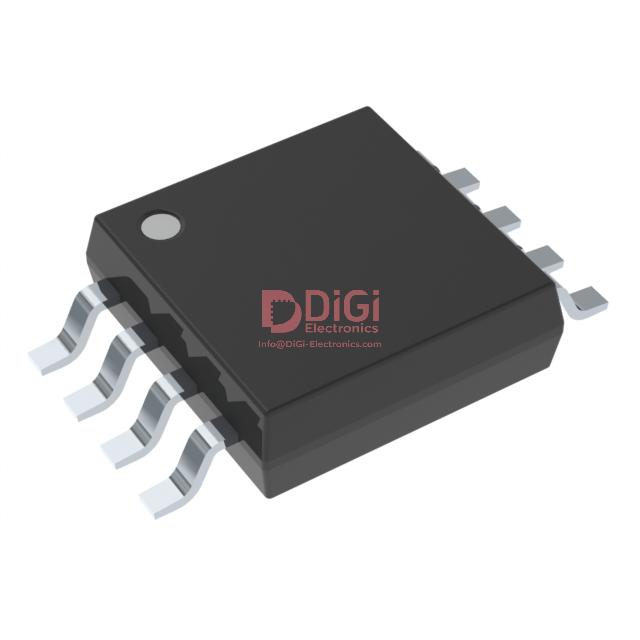

The MAX7411CUA is an active filter IC manufactured by Analog Devices, designed for low-pass filtering applications. This component utilizes a switched capacitor design to achieve an elliptic response, offering a sharp cutoff characteristic.
Key specifications include a cutoff frequency of 15kHz and a 5th order filter design, providing precise signal conditioning. It operates within a voltage supply range of 4.5V to 5.5V. The IC is housed in an 8-uMAX/uSOP package, suitable for surface mount applications.
This filter IC is ideal for applications requiring the removal of high-frequency noise while passing lower frequencies. Its switched capacitor architecture allows for accurate filter performance without external inductors, making it a compact solution for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cutoff frequency for the MAX7411CUA is 15kHz.
The MAX7411CUA is an elliptic, low pass switched capacitor filter.
The MAX7411CUA operates with a supply voltage range of 4.5V to 5.5V.
The MAX7411CUA is available in an 8-uMAX/uSOP package.
The MAX7411CUA filter is designed for surface mounting.
