| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,815 pcs
|
27815 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The MAX7359ETG+T is an I2C interfaced peripheral designed to provide microprocessors with management of up to 64 key switches. It generates key codes for each press and release, facilitating multiple key entries. The device ensures low-EMI operation through static key input monitoring and supports metallic or resistive switches up to 5kΩ.
Key features include autosleep and autowake functions to minimize power consumption, with sleep current typically under 1µA. It debounces keys and maintains a FIFO of up to 16 key-press and release events. An interrupt output can alert on key presses. The MAX7359 offers up to seven open-drain logic outputs capable of driving LEDs and a 400kbps, 5.5V-tolerant, 2-wire serial interface.

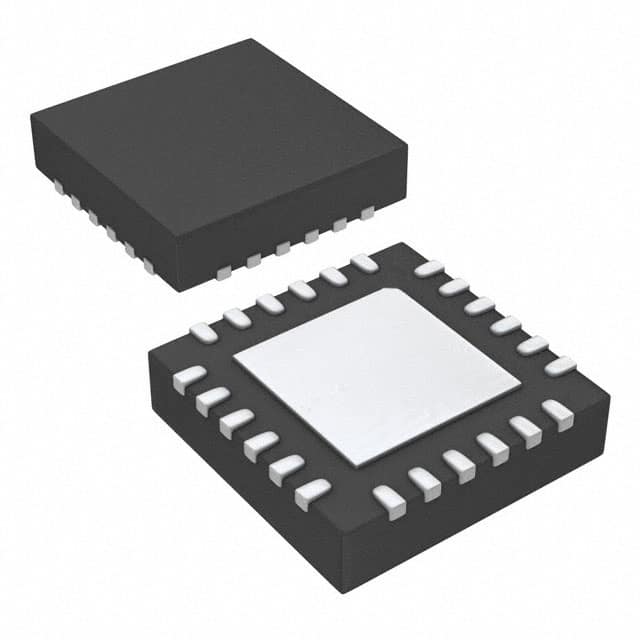

This component operates over a temperature range of -40°C to +85°C. It is offered in a compact 24-pin TQFN package (3.5mm x 3.5mm), making it suitable for portable consumer electronic applications such as cell phones, PDAs, and handheld games.
The MAX7359ETG+T is surface-mounted and utilizes an I2C interface. It operates within a voltage range of 1.65V to 3.6V.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX7359ETG+T operates from 1.65V to 3.6V.
The MAX7359ETG+T is available in a 24-TQFN (3.5x3.5) package and a 24-WFQFN Exposed Pad package.
The MAX7359ETG+T operates from -40°C to +85°C.
The MAX7359ETG+T is RoHS3 Compliant.
The MAX7359ETG+T can monitor up to 64 key switches.
The typical sleep current for the MAX7359ETG+T is 1µA.
The MAX7359ETG+T supports a 400kbps serial interface speed.
