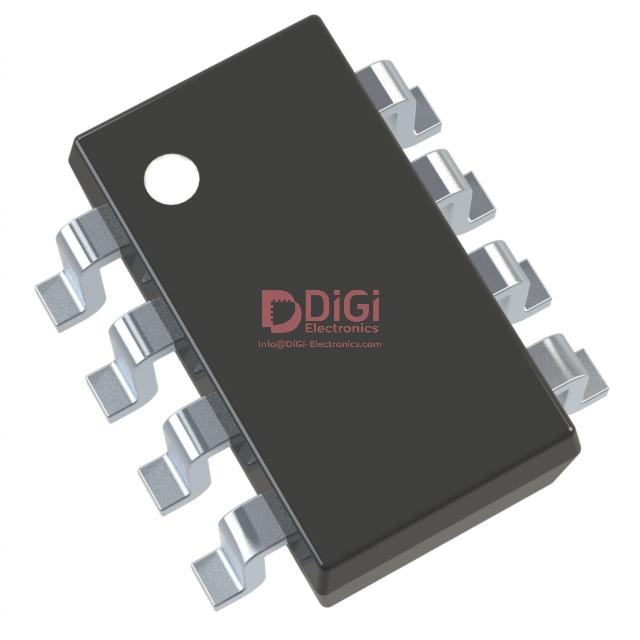

MAX6746KA29 The Analog Devices / Maxim Integrated MAX6746KA29+T is a supervisor IC designed for power management applications. It monitors a single voltage level and provides an active low reset signal.
Mfr Part #:

MAX6746KA29

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices / Maxim Integrated MAX6746KA29+T is a supervisor IC designed for power management applications. It monitors a single voltage level and provides an active low reset signal.
✓ Total Stock: 27,815 pcs
$ Price Range: $0.75

MAX6746KA29 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
27,815 pcs
On Request
27815 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX6746KA29 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Reset
Reset Timeout
Supplier Device Package
Type
Voltage
View Similar Products (0)

MAX6746KA29 Description

Short technical summary and product information.

The MAX6746KA29+T from Analog Devices / Maxim Integrated is a supervisor integrated circuit (IC) designed for monitoring voltage levels and ensuring system stability. This device features a simple reset or power-on reset function, making it suitable for various power management applications.



Key electrical characteristics include monitoring a single voltage with a threshold of 2.925V. The reset output is active low, and the reset timeout is a minimum of 5.692ms. The output stage is configured as push-pull, totem pole.



This supervisor IC operates within a temperature range of -40°C to 125°C (TA). It is supplied in a compact SOT-23-8 package, suitable for surface mount applications. The device is RoHS3 compliant and has an MSL rating of 1 Unlimited.



Designed for reliability, the MAX6746KA29+T helps protect systems from voltage fluctuations and ensures proper power-up sequencing.

MAX6746KA29 Quick Information

Product Type: Supervisor IC
Canonical Name: Analog Devices / Maxim Integrated MAX6746KA29+T Supervisor IC
Subcategory: Power Management (PMIC)

MAX6746KA29 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAX6746KA29 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX6746KA29 Features

  • Monitors a single voltage level.
  • Features a 2.925V threshold.
  • Provides active low reset output.
  • Operates from -40°C to 125°C.
  • Surface mount SOT-23-8 package.

MAX6746KA29 Applications

  • Ideal for power-on reset circuits.
  • Used in voltage monitoring systems.
  • Suitable for embedded system control.
  • Ensures system stability during power-up.

MAX6746KA29 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the reset threshold voltage of the MAX6746KA29?

The reset threshold voltage is 2.925V.

What is the output type of this supervisor?

The output is push-pull (totem pole).

What is the reset type?

The reset type is active low.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What package is this supervisor available in?

It is available in a surface mount SOT-23-8 package.

What is the reset timeout?

The reset timeout is a minimum of 5.692ms.
