| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,227 pcs
|
2227 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Supply Voltage |
The Maxim MAX6398ATT+T is a high-voltage overvoltage protection circuit designed to safeguard systems from damaging voltage transients. It operates across a broad supply voltage range of 5.5V to 72V, making it suitable for demanding industrial applications.
This device monitors input voltages and controls an external n-channel MOSFET to either disconnect the load or limit the output voltage during overvoltage conditions. It features an adjustable overvoltage threshold, allowing for user-defined protection levels. The integrated charge pump ensures full enhancement of the external MOSFET for low RDS(ON) performance.
Key features include internal thermal-shutdown protection to prevent damage from overtemperature conditions. The MAX6398ATT+T is specified for operation from -40°C to +125°C and is housed in a compact, thermally enhanced 6-TDFN (3x3mm) package with surface mount mounting type.
Applications include industrial systems, notebook computers, and wall cube power devices where robust protection against high-voltage transients is critical.
The MAX6398ATT+T operates over a wide supply voltage range of 5.5V to 72V.
The device is fully specified for operation from -40°C to +125°C.

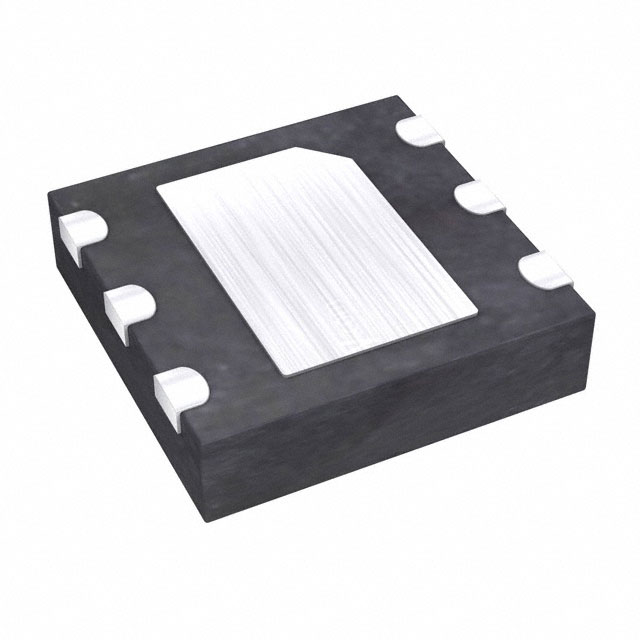

The MAX6398ATT+T is supplied in a 6-TDFN (3x3mm) package with an exposed pad, suitable for surface mounting.
Yes, the MAX6398ATT+T includes internal thermal-shutdown protection.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
