| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56,500 pcs
|
56500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Supply Current | |
| Tape & Reel |
The MAX6369KAT is a flexible watchdog timer supervisor from Analog Devices, Inc., designed to enhance system reliability by monitoring microprocessor (μP) activity. It signals when a system is operating improperly by asserting a watchdog output if the μP fails to toggle the watchdog input within the specified timeout period.
This device offers pin-selectable watchdog timeout periods and startup delay options, allowing for customization without power cycling. The watchdog output can be configured as either open-drain or push-pull and is active-low. It operates over a wide supply voltage range of +2.5V to +5.5V and consumes a low supply current of 8μA.

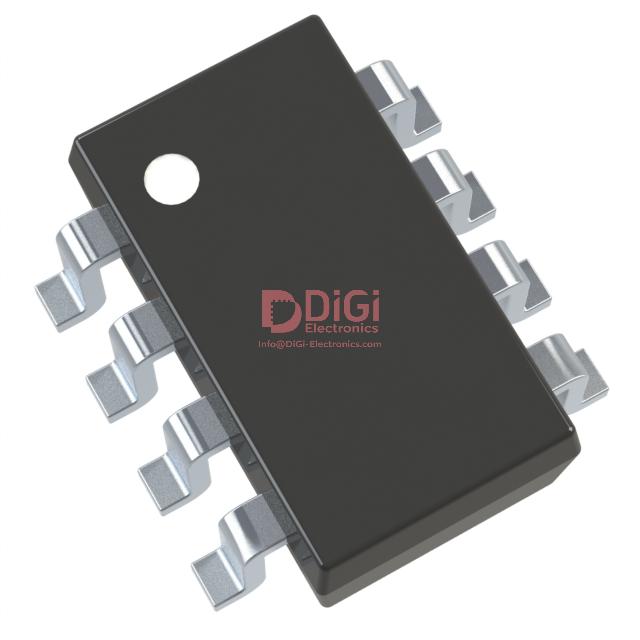

The MAX6369KAT is housed in a miniature 8-pin SOT23 package, suitable for surface mounting. Its ability to detect code execution errors makes it ideal for critical μP and microcontroller monitoring in embedded control systems, industrial controllers, telecommunications, and networking applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAX6369KAT operates from 2.5V to 5.5V.
The MAX6369KAT is available in an SOT-23-8 surface-mount package.
The operating temperature range is -40°C to 125°C.
The supply current is typically 8μA.
The watchdog output can be configured as open-drain with 100ms timeout or push-pull with 1ms timeout.
The reset output is active-low, open-drain or open-collector.
It monitors a single voltage.
