| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Operating Voltage | |
| Output | |
| Reset | |
| Reset Timeout | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The MAX6365PKA31-T is a supervisory integrated circuit from Analog Devices, part of the MAX6365–MAX6368 series. It is designed to simplify power-supply monitoring and battery-backup control functions in microprocessor systems.
Key electrical specifications include a low operating supply voltage down to 1.2V and a precision monitoring capability for common power supply voltages like 5.0V, 3.3V, 3.0V, and 2.5V. This specific part features a reset threshold voltage of 3.08V and an active low, open-drain or open-collector output. It also includes a reset timeout period of 150ms minimum and a low quiescent supply current of 10µA.
The device performs essential system functions such as providing a microprocessor reset output during power-up, power-down, and brownout conditions. It also internally controls the switch between the main supply and a backup battery to maintain data or low-power operation when the main supply fails. Memory write protection is provided through internal chip-enable gating during supply or processor faults.

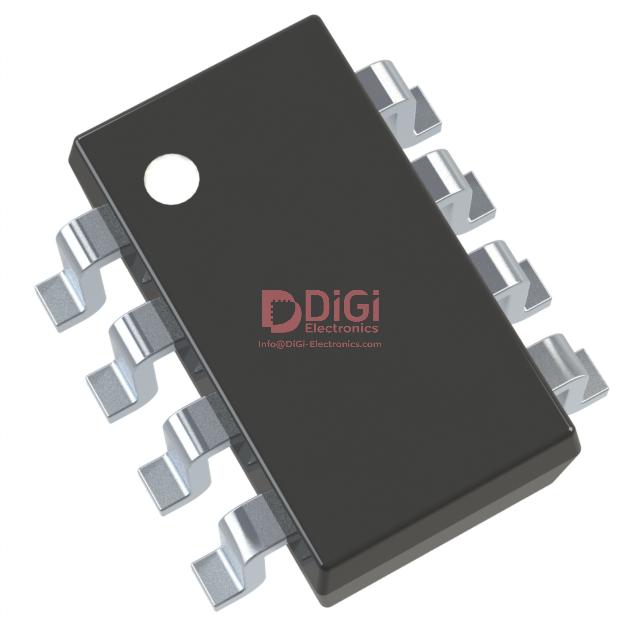

Packaged in a miniature 8-pin SOT-23 package, the MAX6365PKA31-T is suitable for surface mount applications. Its operating temperature range is -40°C to 85°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reset threshold voltage is 3.08V.
The reset output is active-low and open-drain or open-collector.
The operating temperature range is -40°C to +85°C.
The quiescent supply current is 10µA.
The reset timeout period is 150ms minimum.
The MAX6365PKA31-T is available in a surface-mount SOT-23-8 package.
