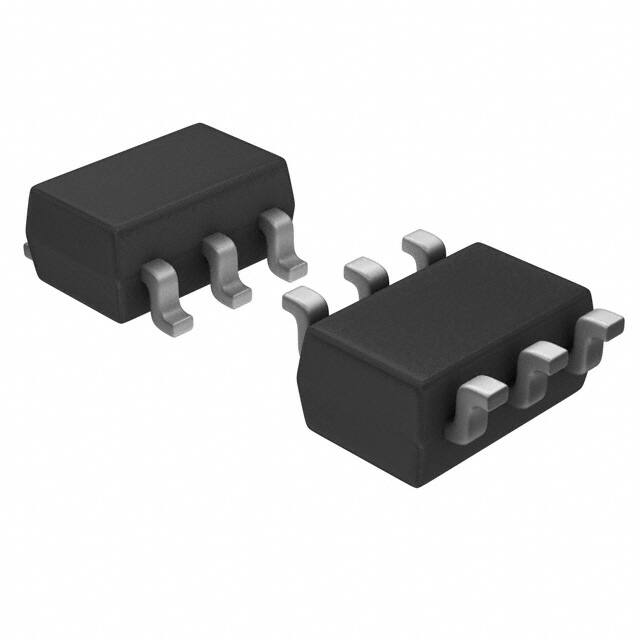

MAX6361PUT29 The Analog Devices MAX6361PUT29 is a voltage supervisor IC. It operates with a supply voltage of 2.38V and features a wide operating temperature range.
Mfr Part #:

MAX6361PUT29

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices MAX6361PUT29 is a voltage supervisor IC. It operates with a supply voltage of 2.38V and features a wide operating temperature range.
✓ Total Stock: 22,639 pcs
$ Price Range: $0.75

MAX6361PUT29 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
22,600 pcs
On Request
22600 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
39 pcs
On Request
39 pcs On Request 1 On Request On Request 0724 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAX6361PUT29 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Channels
Operating Temperature
Output Type
Reset
Technology
Watchdog Timer
View Similar Products (0)

MAX6361PUT29 Description

Short technical summary and product information.

The MAX6361PUT29 from Analog Devices is a voltage supervisor integrated circuit designed for monitoring power supply rails. It features a fixed supply voltage of 2.38V and can operate within a broad temperature range from -40°C to 85°C.



This supervisor IC is housed in a compact SOT-23-6 package, suitable for surface mount applications. It offers a minimum supply voltage of 0V and a maximum of 5.5V, with a low operating supply current of 15μA. The device includes one channel and one function, with an open-drain or open-collector output.



Key electrical characteristics include a maximum power dissipation of 696mW and it utilizes BICMOS technology. The terminal finish is Matte Tin (Sn) and it is available in a Tape & Reel (TR) package. The MAX6361PUT29 is designed for applications requiring reliable voltage monitoring.

MAX6361PUT29 Quick Information

Product Type: Voltage Supervisor
Canonical Name: MAX6361PUT29 Voltage Supervisor
Subcategory: Supervisors

MAX6361PUT29 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: yes

MAX6361PUT29 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAX6361PUT29 Features

  • Monitors voltage with one channel.
  • Operates at 2.38V supply voltage.
  • Wide -40°C to 85°C temperature range.
  • Compact SOT-23-6 surface mount package.
  • Low 15μA operating supply current.

MAX6361PUT29 Applications

  • Power supply monitoring in microprocessor systems.
  • Battery-powered device voltage supervision.
  • Portable equipment under-voltage detection.
  • Industrial control system reset generation.

MAX6361PUT29 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the typical supply voltage of the MAX6361PUT29?

The typical supply voltage is 2.38V, with a range of 0V to 5.5V.

What is the operating temperature range?

-40°C to 85°C.

What package is the MAX6361PUT29 available in?

SOT-23-6.

What is the supply current of the MAX6361PUT29?

15μA.

What type of output does the MAX6361PUT29 have?

Open drain or open collector.

Is the threshold adjustable on the MAX6361PUT29?

No, the adjustable threshold is not available.

Does the MAX6361PUT29 have a watchdog timer?

No, the watchdog timer is not present.
