| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,060 pcs
|
1060 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Output Type | |
| Package / Case | |
| Supply Current |
The MAX6337US16D3-T is a microprocessor supervisory circuit from Maxim Integrated, designed to monitor power supplies in 1.8V to 3.3V systems. It asserts a reset signal when the VCC supply voltage drops below a preset threshold or when a manual reset is asserted. This device features an active-low, open-drain RESET output.
Key electrical specifications include a low supply current of 3.3µA and a reset threshold available from 1.6V to 2.5V in approximately 100mV increments. The MAX6337 is guaranteed to be in the correct state for VCC down to 1.0V. It offers several power-on reset pulse widths, including 1ms, 20ms, and 100ms minimum.

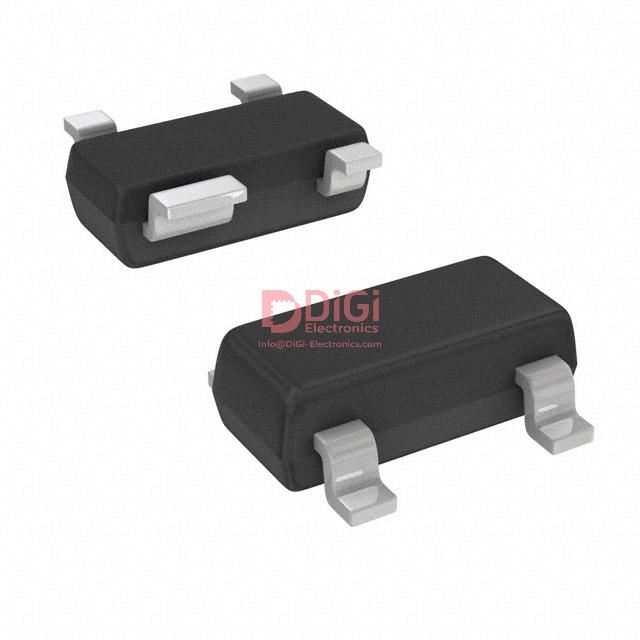

This IC is housed in a compact 4-pin SOT-143 package, suitable for space-critical applications. It operates across a wide temperature range of -40°C to 125°C. The MAX6337US16D3-T is ideal for critical µP/µC power monitoring in portable and battery-powered equipment, as well as automotive applications.
The MAX6337US16D3-T operates with a supply voltage guaranteed down to 1.0V.
It is available in a SOT-143-4 surface-mount package.
It operates from -40°C to 125°C.
The typical supply current is 3.3µA.
The reset threshold is factory-trimmed to 1.6V for this part, with a selectable range of 1.6V to 2.5V.
It features an open-drain output.
